Description
Parameters and specifications:
Brand: BENTLY (Bentley)
Type: Power module, designed for industrial environments
Power supply type: AC and DC, can accept a wide range of input voltage, and convert to other 3500 modules can accept the voltage
Enter specifications:
Ac: Nominal 110 to 220 Vac RMS, range can be extended to 85 to 264 Vac RMS or 120 to 373 Vac pk
Dc: High voltage DC 88 to 140 Vdc, low voltage DC 20 to 30 Vdc
Physical characteristics:
Power module dimensions: 120.7 mm x 50.8 mm x 251.5 mm (H x W x D)
Weight of the power module: 1.39 kg
Power input module dimensions: 120.7mm x 25.4mm x 114.3mm (H x W x D)
Weight of the power input module: 0.34 kg
Series:

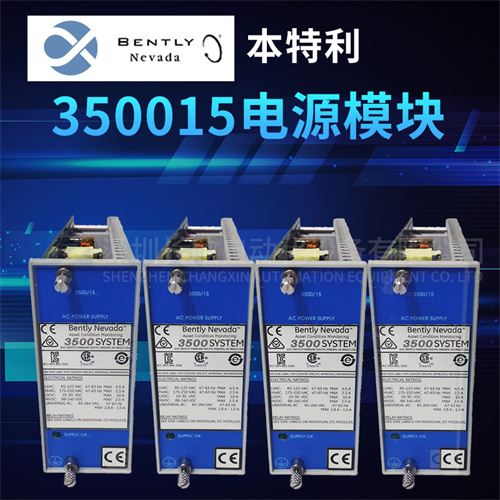

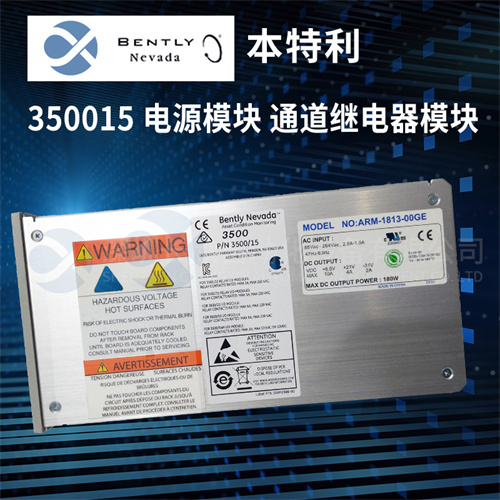

The BENTLY 3500/15 is a product of Bently Nevada, Inc. as part of its industrial control or data acquisition and analysis systems.
Features:
Multiple power supply configuration: The 3500 frame can be equipped with one or two power supplies (any combination of AC and DC)
Power backup: When two power supplies are installed, the second power supply can be used as a backup of the first power supply
Power management: Either power supply can power the entire rack. When there are two power supplies, one in the lower slot acts as the primary power supply and the other in the upper slot acts as the backup power supply
Strong compatibility: Compatible with voltage sources around the world
LED indicator: When the power supply is working normally, the LED light on the front panel will light up
Functions:
The BENTLY 3500/15 power module is a key component in the industrial control system, it receives the external power supply, converts it to the voltage suitable for use by other 3500 modules, and ensures the stable operation of the system.
Especially for the BENTLY 3500 series data acquisition and analysis system, the power module provides stable power support for vibration monitoring, fault diagnosis and preventive maintenance of the system.
