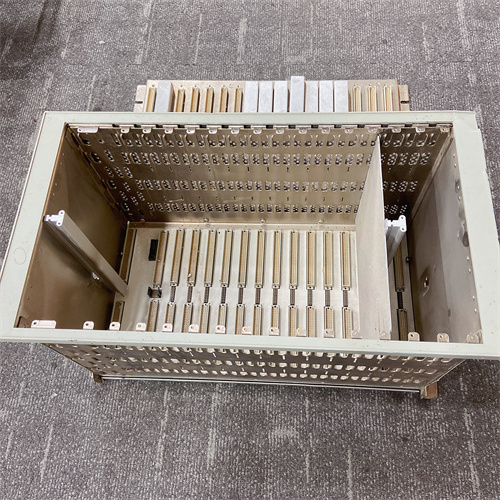

3500/05-01-02-00-00-01

Description

Parameters & Specifications‌:
–‌Model Number‌: 3500/05-01-02-00-00-01
–‌Manufacturer‌: Bently Nevada (a GE Measurement & Control Solutions brand)
–‌Series‌: 3500/05
–‌Type‌: System Rack for Mechanical Condition Monitoring
‌Dimensions & Weight‌:
–‌Dimensions‌: Available in two sizes12:

• Full-size rack: 19-inch EIA rack with 14 module slots, dimensions approximately 48.26cm x 34.92cm x 26.59cm (L x W x H)4
• Mini rack: 12-inch rack with 7 module slots
  –‌Weight‌: Specific weight not provided, but expected to be within the range of industrial racks of similar size and material.
  ‌Series‌:
• Part of the 3500/05 series of machinery protection systems by Bently Nevada.
•
  ‌Features‌:
  –‌Modular Design‌: Accommodates various 3500 monitor modules and rack power supplies13.
  –‌Power Distribution‌: Enables power to be distributed to each module as required13.
  –‌Installation Options‌: Supports panel mounting, rack mounting, and bulkhead mounting13.
  –‌Accessibility‌: Provides easy access to wiring and I/O modules from the rear of the rack13.
  –‌Compatibility‌: Compatible with both full-size and mini racks, depending on the installation option12.
  ‌Functions & Applications‌:
  –‌Module Housing‌: Serves as the housing for all 3500 monitor modules and rack power supplies13.
  –‌System Integration‌: Enables 3500 modules to interact and share data, facilitating comprehensive machinery condition monitoring13.
  –‌Monitoring & Protection‌: Integral to machinery protection systems, providing a platform for real-time monitoring and fault detection13.
  –‌Industries Served‌: Widely used in industries such as power generation, oil and gas, manufacturing, and transportation, where rotating equipment monitoring is critical
