Description
argument
Input voltage: 24VDC, 48VDC (may vary by model)
Output voltage: 24VDC
Operating temperature range: -40℃ ~ +85℃
Storage temperature: -40°C to +85°C (-40°F to +185°F)
Humidity: 95% noncondensing
Energy consumption: 4.6 watts max
specification
Series: 3500/05
Country of origin: USA
Availability: In stock
Hardware: RS422 interface
Channel update rate: 1 second, typical
Size and weight
Product size: 100mm x 50mm x 20mm (however, please note that this may differ from the overall size of the rack)
Frame size:
Full size rack: 19-inch EIA rack with 14 module slots
Mini rack: 12-inch rack with 7 module slots
Product weight:
1.2kg (may be the weight of a part or specific configuration)
0.82 kg (another possible weight)
series
The product is part of Bently Nevada’s 3500/05 series.
trait
Modular design: The 3500 monitor framework can be integrated into computer systems in a variety of ways.
Installation flexibility: There are three different types of installation: panel mount, rack mount and bulkhead mount.
Power distribution: Enables the 3500 modules to interact and enables the power supply to distribute power to each module as needed.
Easy maintenance: Wiring and I/O modules are accessible from the back of the rack for easy maintenance.
effect

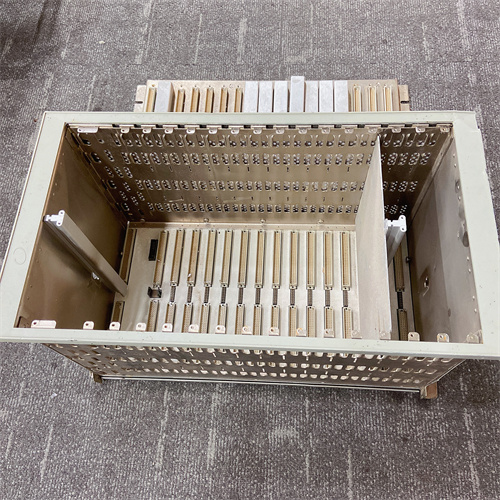

3500/05-01-02-00-00-01 The system rack plays an important role in the mechanical condition monitoring system. It is used to house all 3500 monitor modules as well as the rack power supply, ensuring that these modules can interact and receive the necessary power supply. In this way, the system can monitor the status of mechanical equipment in real time, including key parameters such as speed and vibration, so as to provide timely fault warning and diagnosis to ensure the normal operation of equipment and the continuity of production.
