Description
Parameters and specifications :

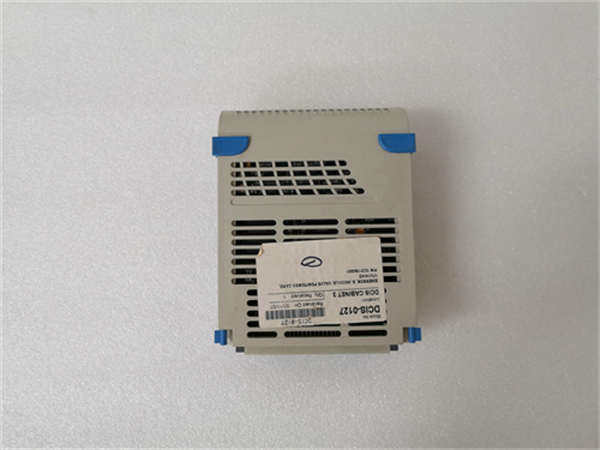

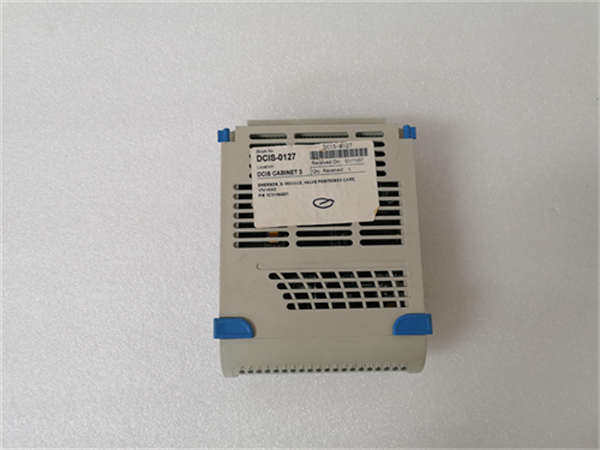

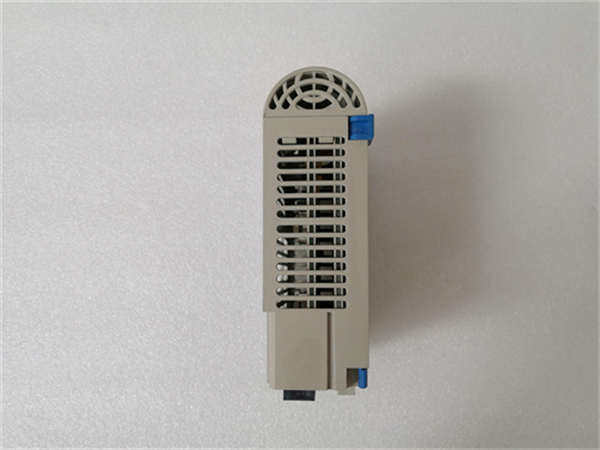

- Model : 1C31194G01
- brand : Westinghouse ()
- Output current : 4 ~ 20 mA, programmable and reversible
- accuracy : Maximum error 32μA ( at 25°C @ 24 VDC)
- Temperature drift : ±1 μA per °C ( Max.)
- Power suppression : ±1 A per V
- insulation : Low voltage, less than 48 VAC/DC between electrode and auxiliary power supply
Function :
- digital output : As a digital output module, 1C31194G01 is responsible for converting digital signal into current signal output in industrial control system, is used to drive actuator, indicator and other equipment
- Monitoring and control : In the monitoring system, is used to measure and monitor the flow rate, pressure and other parameters, provides feedback signals for the control system
- improve the level of system automation : through accurate output and strong programmability, improve the control accuracy and response speed of industrial automation system
