Description
Parameters and specifications
Input:

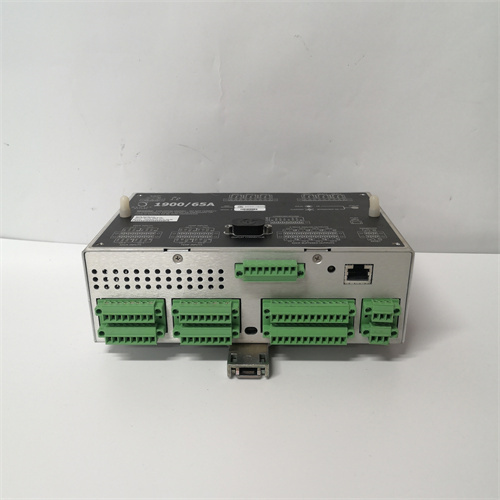

The 1900/65A offers four sensor inputs and four temperature inputs.
Each sensor input can be configured to support 2 – and 3-wire accelerometers, speed sensors, or proximity sensors.
Each temperature input supports E, J, K, and T thermocouples and 2 – or 3-wire RTDS.
Technical specifications:
24-bit A/D converter, 25 kHz bandwidth.
Level 2 alarms – ALERT and DANGER.
6 configurable relays with voting logic.
Receive 18 to 36Vdc power supply; A 110/220Vac external power supply is available.
trait
Low cost: The low cost of this monitor makes it an ideal solution for general-purpose machines and processes.
Versatility: Provides more inputs than other 1900 series monitors in terms of number and variety.
Flexible installation: Easy installation and configuration with small size, flexible installation options and configuration software.
Easy configuration: With separate configuration software, each sensor input and temperature input can be easily configured.
Remote monitoring: The display can be mounted directly on the monitor or separately, up to 250 feet from the monitor.
