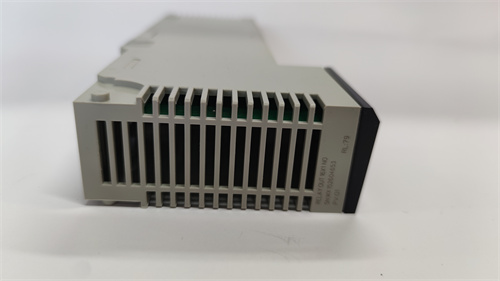

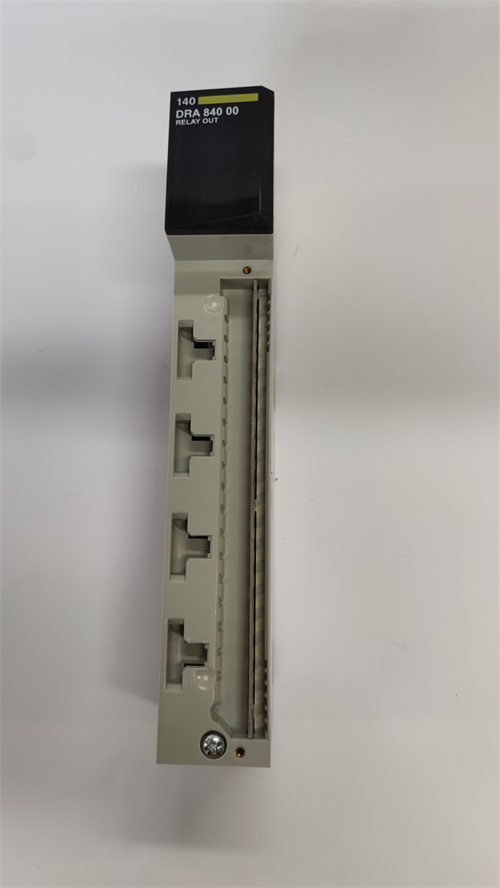

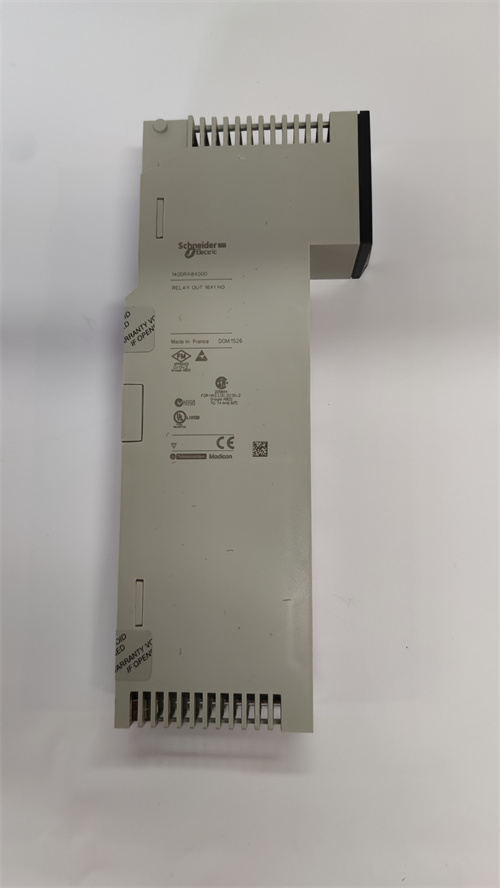

140DRA84000

Description

‌Parameters and Specifications‌:

–‌Model Number‌: 140DRA8400012.
–‌Manufacturer‌: Schneider Electric12.
–‌Type‌: Relay Output Module1.
–‌Output Quantity‌: 16 points1.
–‌Output Type‌: 16 x 1 Normally Open (NO) Relay Contacts1.
–‌Switching Capacity‌: 500 VA per contact1.
–‌Surge Current‌: 10 A for 10 ms1.
–‌Operating Voltage‌:

• AC: 20-250V1.
• DC: 5-30V (for control), 30-150V (for load)1.
  –‌Load Current‌:
• 2 A per contact at 250VAC, 30VDC, 60°C1.
• 300 mA (resistive load) at 150VDC1
•
  ‌Dimensions and Weight‌:

–‌Dimensions‌: Standard module format, exact dimensions may vary1.
–‌Weight‌: Less than 1 pound (approximately 0.45 kg)1.
‌Series‌:

• Belongs to the Modicon Quantum series from Schneider Electric12.
  ‌Features‌:

–‌High Switching Capacity‌: Capable of handling 500 VA per contact1.
–‌Surge Protection‌: Withstands 10 A surge current for 10 ms1.
–‌No External Power Required‌: Relay module operates without the need for an external power supply1.
–‌LED Indicators‌: Equipped with LED indicators for monitoring channel status1.
–‌Compliance‌: Meets various safety and certification standards, including UL 508, CSA 22.2-142, C-Tick, GOST, and ABS1.
‌Applications‌:

–‌Industrial Automation‌: Widely used in industrial automation systems for discrete output control12.
–‌Machine Control‌: Essential in machine control applications, providing reliable switching capabilities12.
–‌Process Control‌: Suitable for process control systems requiring high switching capacity and surge protection
