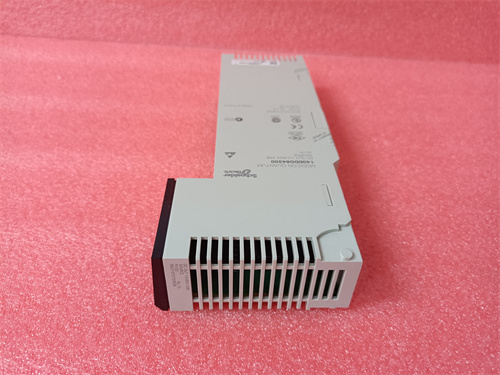

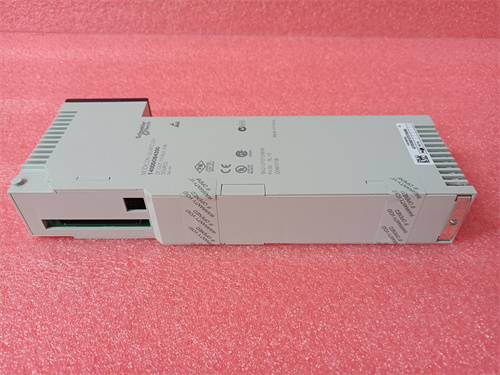

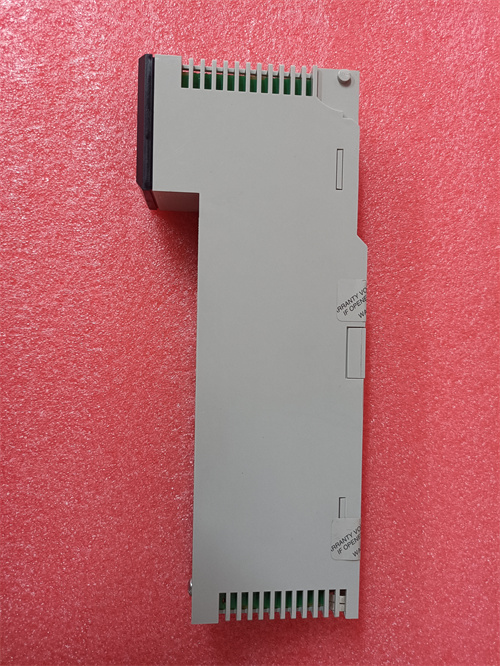

140DDO84300

Description

Parameters and Specifications:

Model Number: 140DDO84300.
Manufacturer: Schneider Electric.
Voltage Range: 10 to 60 V DC (output voltage); 20.4V DC to 28.8V DC (working voltage range).
Output Type: Discrete (negative logic).
Output Quantity: 16 discrete outputs.
Output Current: Up to 2A per channel.
Maximum Load Current: 12A per module; 6A per group.
Switching Frequency: 2.5kHz.
Reaction Time: ≤ 1 ms for transitions between state 0 and state 1, and vice versa.

Dimensions and Weight:

Dimensions: While the exact dimensions may vary, it’s designed for standard rack mounting.
Weight: Approximately 0.45 kg.

Features:

High-Performance: Designed for high-speed and reliable discrete output control.
Flexibility: Can switch up to 2A/point, allowing for various load configurations.
Robustness: Internal fuse protection for each output group, ensuring safe operation.
Easy Integration: Compatible with Modicon Quantum automation platforms, facilitating seamless integration into existing systems.
LED Status Indicators: Provides visual feedback on the status of outputs, bus communication, and faults.
Electrical Isolation: Ensures safety and prevents interference between channels and groups.
