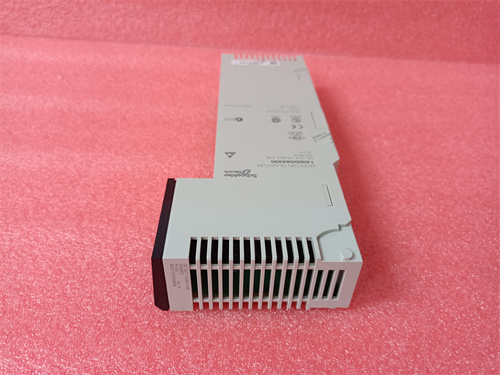

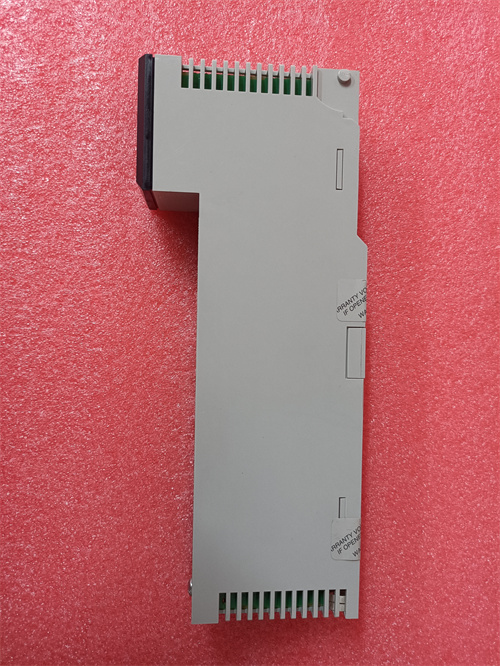

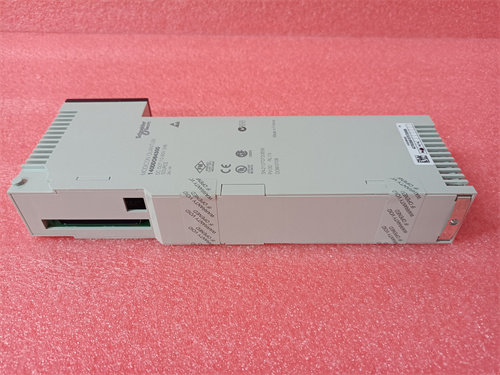

140DDO84300

Description

Schneider: 140ddo84300 parameters:

Output number: 16.
Output diagram: negative logic (traps).
Output voltage: 10-60 w dc.
Power consumption: 1w +(full current in module 1vx).
Type of product or component: discrete output module.
Channel group: 2 groups of 8 people.
Voltage reduction: 501 v2a.
Address requirement: 1 output word.
Absolute output: 72v constant.
Maximum load current: 6a per group; Zero per module.
* abnormal wave current: 7.5a in the 50s.
Reaction time: from 1 to 0 states; As of 2010, from 0 to 1 million.
Type of protection: internal protection against fuses 8a in each group.
Local signal: 16 led green input states (1-32); 1led red detects external faults (f); In the process of (activation) communication on the 1light green line.
Current demand: 160ma.
Product weight: 0.45 kg.
Leakage current: inductivity (h) = 0.5 / (current) in square x (switching frequency).
Insulation between canals and tyres: 2500vrmsdc lasts one minute.
Insulation between groups: 700vrmsdc lasts 1 minute.

Schneider module 140ddo84300 is characterized as follows:

Effective stability: the module has efficient and stable properties that can ensure fast, accurate signal collection and transmission.
The module supports multiple interfaces: it supports multiple input and output interfaces that can be easily connected to different sensors and performers.
