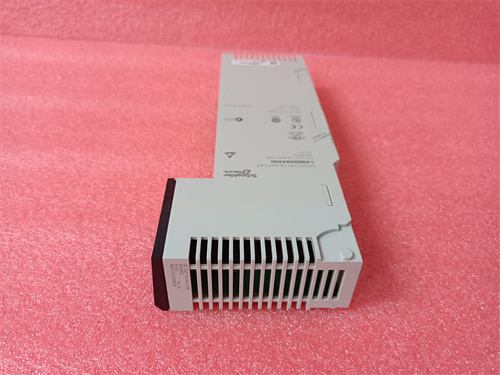

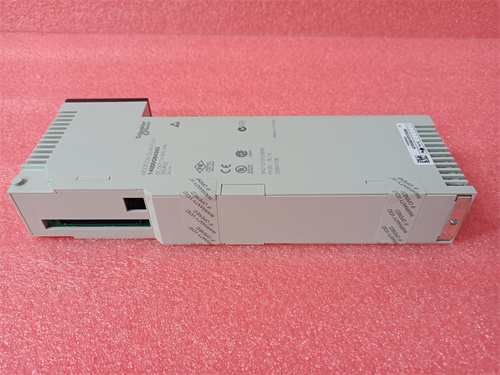

140DDO84300

Description

‌Parameters and Specifications‌:

–‌Model Number‌: 140DDO8430012.
–‌Brand‌: Schneider Electric12.
–‌Series‌: Quantum 140 Series (I/O Module)56.
–‌Output Type‌: Discrete Output Module6.
–‌Number of Outputs‌: 16 discrete outputs (grouped into two sets of eight)6.
–‌Output Voltage Range‌: 10 to 60 V DC (limited to 10.2 to 72 V)6.
–‌Output Current‌: Maximum 2 A per output, 6 A per group, 12 A total6.
–‌Surge Current‌: 7.5 A for 50 seconds6.
–‌Isolation‌: 2500 Vrms DC between channels and bus, 700 Vrms DC between groups

–‌Response Time‌: ≤1 ms for state transitions6.
‌Dimensions and Weight‌:

–‌Dimensions (LxWxH)‌: 96mm x 48mm x 16mm3.
–‌Weight‌: Approximately 1.2kg3.
‌Features‌:

–‌High-Speed Response‌: Fast state transitions ensure efficient control6.
–‌High Output Count‌: 16 discrete outputs for controlling multiple devices6.
–‌Negative Logic‌: Operates in negative logic, where a low signal is active6.
–‌Internal Protection‌: 8 A fuses per group for output protection6.
–‌LED Indicators‌: Indicates bus communication, external faults, and input status6.
–‌CE Certified‌: Complies with European safety standards6.
‌Applications‌:

–‌Industrial Automation‌: Used in industrial automation systems for controlling external devices or processes6.
–‌Process Control‌: Integrates with PLC systems for precise control of discrete outputs6.
–‌Machine Control‌: Ideal for machines requiring multiple discrete outputs for various control functions
