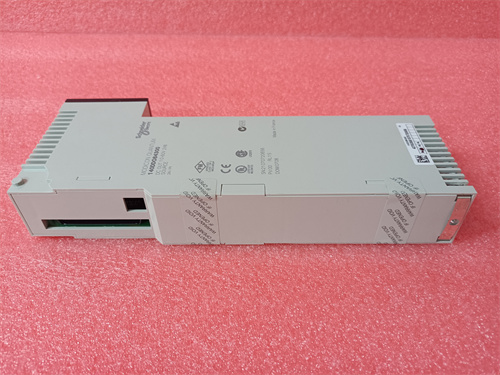

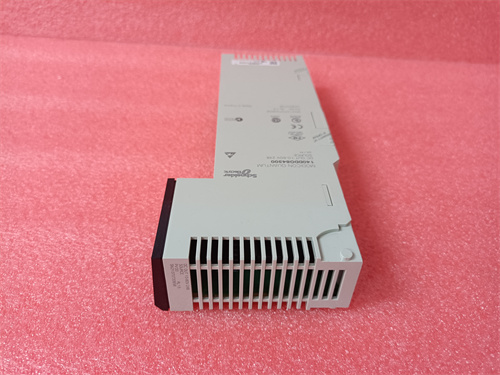

140DDO84300

Description

‌Parameters and Specifications‌:

–‌Model Number‌: 140DDO8430012.
–‌Brand‌: Schneider Electric12.
–‌Series‌: Modicon Quantum I/O Module12.
–‌Type‌: DC Discrete Output Module12.
–‌Number of Outputs‌: 16 discrete outputs12.
–‌Output Voltage Range‌: 10 to 60 V DC, maximum permanent output voltage of 72 V6.
–‌Maximum Load Current‌: 2 A per channel, 12 A total per module6.
–‌Surge Current‌: Up to 7.5 A for 50 seconds6.
–‌Switching Frequency‌: 2.5 kHz7.
‌Dimensions and Weight‌:

–‌Dimensions‌: 96mm x 48mm x 16mm3.
–‌Weight‌: Approximately 1.2 kg3 or 0.5 kg in another source

‌Series‌:

• Part of the Modicon Quantum Automation Platform from Schneider Electric12.
  ‌Features‌:

–‌High Density Outputs‌: Provides 16 discrete outputs in a compact package67.
–‌Electrical Isolation‌: Offers electrical isolation between the module and the field7.
–‌Negative Logic‌: Operates in negative logic, where outputs are active at low logic levels6.
–‌LED Indicators‌: Equipped with LED indicators for bus communication, external faults, and input status6.
–‌Protection‌: Includes internal output protection with 8 A fuses per group6.
–‌CE Certified‌: Meets European safety standards6.
‌Applications‌:

–‌Industrial Automation‌: Used in various industrial automation systems for controlling external devices or processes12.
–‌PLC Integration‌: Designed to integrate seamlessly with Modicon Quantum PLCs12.
–‌Discrete Control‌: Ideal for applications requiring precise control of discrete signals
