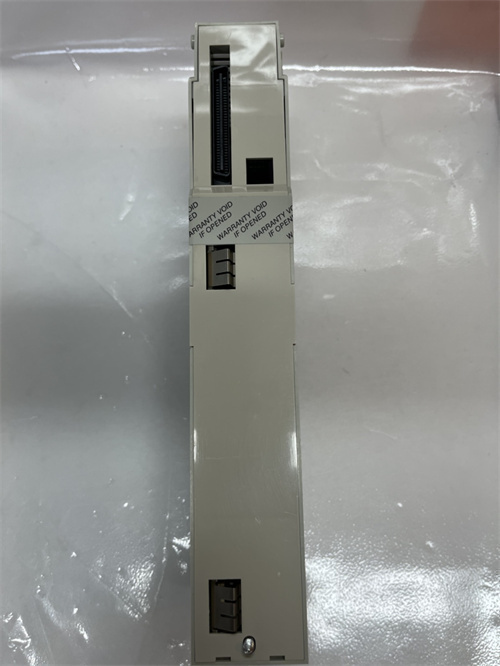

140DDM39000

Description

‌Parameters and Specifications‌:

–‌Model Number‌: 140DDM3900012.
–‌Manufacturer‌: Schneider Electric12.
–‌Type‌: Discrete Input/Output Module23.
–‌Input Voltage‌: 24VDC23.
–‌Output Voltage‌: 24VDC (with limitations up to 56V DC in certain conditions)2.
–‌Input/Output Quantity‌:

• Inputs: 16, grouped as 2 groups of 82.
• Outputs: 8, grouped as 2 groups of 42.
  –‌Maximum Load Current‌:
• Per module: <= 4A2.
• Per group: <= 2A2.
• Per point: <= 0.5A2.
•
  ‌Dimensions and Weight‌:

–‌Dimensions‌:

• 170mm x 105mm x 32mm (for a similar product)1.

• 115mm x 48mm x 150mm (for a possibly different variant)3.
  –‌Weight‌:

• Approx. 120g (for a similar product)1.

• 0.3kg / 300g (as specified)24.
  ‌Series‌:

• Part of Schneider Electric’s Quantum 140 series of PLC modules5.
  ‌Features‌:

–‌High-Speed Switching‌: Capable of fast input/output response times2.
–‌Versatile Grouping‌: Inputs and outputs are grouped, offering flexibility in application design2.
–‌Reliable Performance‌: Ensured through strict voltage and current limits2.
–‌Wide Operating Temperature Range‌: Suitable for various industrial environments13.
‌Applications‌:

–‌Industrial Automation‌: Widely used in industrial automation systems for discrete control tasks5.
–‌Process Control‌: Enables precise control of discrete signals in process control applications5.
–‌PLC Integration‌: Seamlessly integrates into Schneider Electric’s PLC systems, enhancing their functionality
