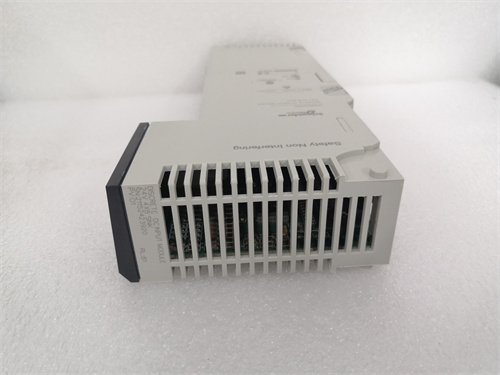

140DDI35300

Description

‌Parameters & Specifications‌:
–‌Model‌: 140DDI3530012.
–‌Input Voltage‌: 24V DC12.
–‌Input Type‌: Discrete12.
–‌Input Points‌:

• 16 channels (as per some sources)12.
• 32 channels (grouped into 4 sets of 8 each, as per another source)7.
  –‌Input Signal Level‌: 0-5V DC, 24V DC2.
  ‌Dimensions & Weight‌:
  –‌Dimensions‌:
• 10 x 7.6 x 1.2 inches (254 x 193 x 30.5 mm) (as per one source)1.
• 10cm x 12cm x 4cm (approx. 254 x 305 x 102 mm) (as per another source)4.
• 118mm x 15mm x 149mm (height x width x depth) (as per another source)2.
•
  –‌Weight‌:
• 1.2kg (as per one source)1.
• 0.5kg (as per another source)4.
• 2kg (as per another source)5.
  ‌Series‌:
• Part of Schneider Electric’s 140 Series PLC modules26.
  ‌Features‌:
  –‌Overvoltage Protection‌: Ensures stable operation even during voltage fluctuations27.
  –‌Pluggable Design‌: Allows for easy installation and replacement2.
  –‌Configurable‌: Can be configured online, providing flexibility in automation systems7.
  –‌Certifications‌: Compliant with standards such as UL 508, CSA 22.2-142, and FM Class 1 Div7.
  ‌Functions‌:
  –‌Signal Detection‌: Detects discrete input signals from sensors, switches, and other devices27.
  –‌Control Integration‌: Integrates seamlessly into Schneider Electric’s PLC systems, enabling precise control and monitoring of industrial processes27.
  –‌Application Versatility‌: Suitable for use in power, chemical, mechanical, and other industrial automation systems27.
  ‌Conclusion‌:
  The 140DDI35300 digital input module from Schneider Electric is a robust and versatile component designed for industrial automation. Its discrete input channels, overvoltage protection, pluggable design, and online configurability make it an ideal choice for signal detection and control integration in various industrial environments. Its compliance with international standards and wide range of applications ensure reliable performance and seamless integration into automation systems.
