Description
effect

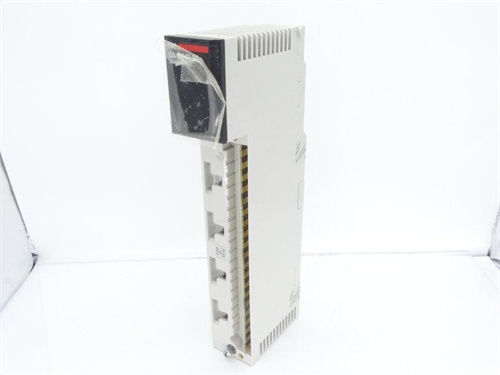

140DAO84210, as a discrete output module, is mainly used in industrial automation control system to control the switching state of various devices.
In PLC (Programmable logic Controller) system, the module can precisely control the state of the output signal and realize the complex control logic.
trait
Electrical interface: Industrial terminal
Case: IP30 protection grade, corrugated aluminum reinforced case
Lightning protection: 600W TVS anti-detonator anti-surge
Interface characteristics: The serial port complies with the EIARS-485 protocol, the transmission medium is super Class 5 twisted pair shielded wire or 485 wire, the transmission rate is 300Bps-115200 BPS (the default is 9600bps, other baud rates are customized)
Operating environment: Protection temperature -20℃-60℃, humidity 5%-95%
Parameters and specifications
Voltage: 24V
Current: 100-400A
Power frequency: 47 ~ 63Hz (good)
Voltage drop: 1.5V
Discrete output voltage range: 83 ~ 253V AC
Response time: Response time from state 0 to state 1 ≤0.5 ms
Size and weight
Size:
Overall dimension: 132mm105mm52mm
Dimensions (with terminal) : 140L105W25.5H mm
Weight: 2KG
series
The 140 series discrete output module from Schneider
