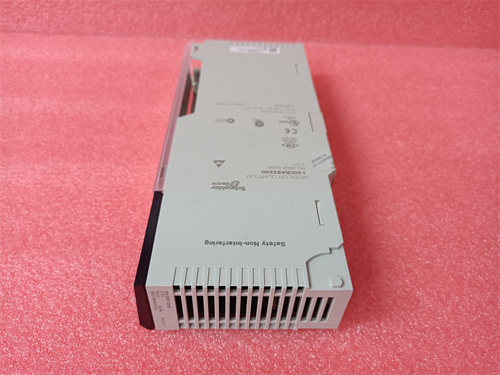

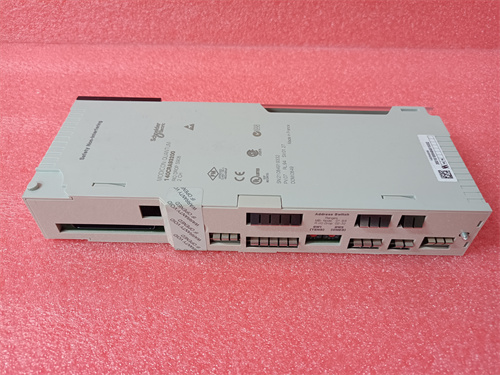

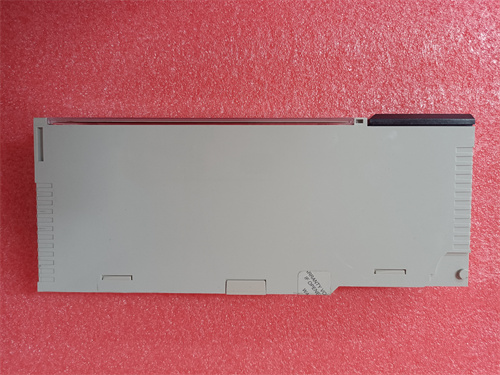

140CRA93200

Description

Parameters and specifications
Model: 140CRA93200
Brand: Schneider
Series: Modicon Quantum series
Bus current requirement: 750 mA
Typical power consumption: 3 W (or 3.8 W)
Number of branches: 31
Compatibility: Works with Quantum 200 series, 500 Series, 800 series or SY/MAX (any combination)
Input/output: 64 in words/drops, 64 out words/drops
Ports/branches: 2 ports/branches, up to 32 ports (16 branches)
Transmission rate: 1544 Mbit/s
Isolation voltage: 500 V DC
Operating temperature range: 0… 60 °C (or 0~55 °C)
Storage ambient temperature: -40… 85 °C
Relative humidity: 95% non-condensing
Altitude: <= 5000 m
Size and weight
The exact size and weight information may vary between search results. A possible size is 115mm x 48mm x 150mm and weighs about 1.2kg; Another possible size is 166mm x 112mm x 36mm and weighs about 375g.

trait
LED indicator: Use 4 LED indicators, including Ready, communication, Error A and Error b
Connectors: ROP coaxial connector area with connectors A and b
Version label: located on the side of the module
Detachable hinged door: There is a detachable hinged door on the front of the module
Redundant cables: Supports diagnostic startup and checksum execution with redundant cables
Electrical connection: 2-hole connector F bent
Environmental standards: comply with CSA C22.2No 142, CUL, UL 508, etc
Antistatic discharge: 8 kV (according to IEC 801-2)
Anti-electromagnetic domain: 10 V/m 80… 1000 MHz (according to IEC 801-3)

effect
Local Quantum I/O station: This module is designed for the local Quantum I/O station and is installed on the same backplane as the control CPU module for bidirectional data transfer between the two modules.
Industrial Automation: As a key component in industrial automation systems, this module provides data input and output capabilities, supporting other components of the Modicon Quantum family and expansion modules.
