Description
Parameters and specifications
Model: 140CRA93200
Bus current requirement: 750 mA
Typical power consumption: 3 W (or 3.8 W)
Support: ma CRPs
Number of branches: 31
Compatibility: Quantum 200 Series, 500 Series, 800 Series or SY/MAX (any combination)
I/O count: 64 in words/drop, 64 out words/drop
Ports/branches: 2 ports/branches, up to 32 ports (16 branches)
Transmission rate: 1544 Mbit/s
Isolation voltage: 500 V DC
Dynamic range: 35 dB
Working environment temperature: 0… 60 °C
Storage ambient temperature: -40… 85 °C
Relative humidity: 95% non-condensing
Altitude: ≤ 5000 m
series

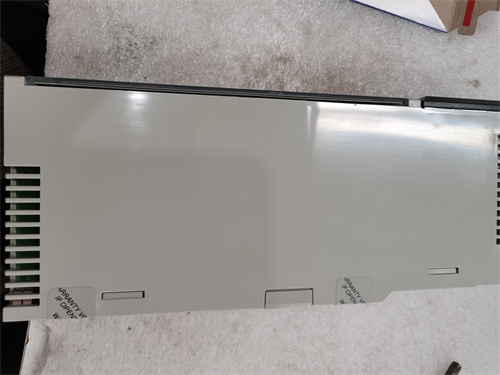

The 140CRA93200 is a remote I/O header dual channel module under the Modicon Quantum automation platform.
trait
Data transfer: Two-way transfer of data between two modules, which are PCU and RIO drop modules located on different backplanes.
Interface: Interconnect with at least one other RIO import module using a coaxial cable network.
LED indicators: There are 4 LED indicators to indicate readiness, communication, error A and error B.
Connectors: ROP coaxial connector area with connectors A and B.
Version label: There is a version label on the side.
Detachable hinged door: There is a detachable hinged door on the front.
Electrical connection: 2-hole connector F with redundant cable.
Environmental standards: comply with CSA C22.2No 142, CUL UL 508, antistatic discharge (8 kV), anti-electromagnetic domain (10 V/m 80… 1000 MHz), etc.
effect
The 140CRA93200 is mainly used in the local Quantum I/O station as a RIO branch adapter module, which is installed on the same backplane as the control CPU module to realize data transmission and exchange.
