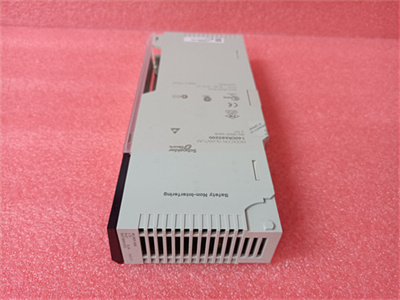

140CRA93200

Description

Parameters and specifications
Bus current requirement: 750 mA
Typical power consumption: 3 W (or 3.8 W, depending on the specific reference)
Supported series: Quantum 200 Series, 500 Series, 800 Series or SY/MAX (any combination)
Input/output words/drops: 64 input words/drops, 64 output words/drops
Number of branches: 31 branches, up to 32 ports (16 branches)
Communication interface: Implemented through a coaxial cable network, at least one other RIO import module is required
Transmission rate: 1544 Mbit/s
Dynamic range: 35 dB
Isolation voltage: 500 V DC
series
Series: Modicon Quantum series
trait
LED indicator: Use four LED indicators, indicating readiness, communication, error A, and error B
Connectors and labels: The ROP coaxial connector area has connectors A and B with version labels on the side
Environmental adaptability: Meets a variety of environmental standards, such as CSA C22.2No 142, CUL UL 508, antistatic discharge (8 kV), anti-electromagnetic domain (10 V/m 80… 1000 MHz), etc
Operating temperature: 0°C to 60°C (Storage temperature: -40°C to 85°C)
effect
Local I/O connection: Used to connect and communicate remote input/output devices (RIO devices) with the Modicon Quantum PLC control system
Industrial automation: In the industrial automation system, as a bridge connecting the field equipment and the central controller, to achieve data acquisition, transmission and control
