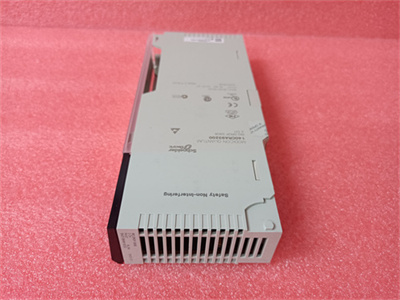

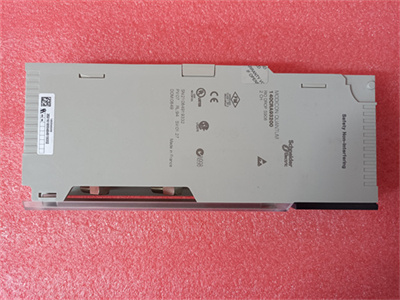

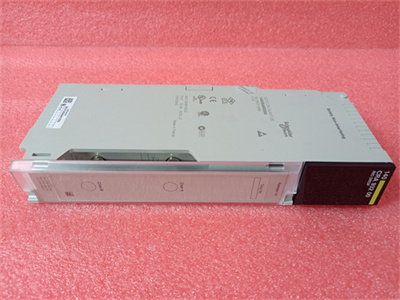

140CRA93200

Description

Parameters and specifications
Brand: Schneider
Model: 140CRA93200
Bus current requirement: 750 mA
Typical power consumption: 3 W (3.8W is also mentioned)
Supported series: Quantum 200 Series, 500 Series, 800 Series or SY/MAX (any combination)
I/O count: 64 in words/drop, 64 out words/drop
Number of branches: With 31 branches, up to 32 ports (16 branches)
Transmission rate: 1544 Mbit/s
Isolation voltage: 500 V DC
Dynamic range: 35 dB
Coaxial cable type: 75 Ohm
Operating temperature range: 0… 60 °C
Storage ambient temperature: -40… 85 °C
Relative humidity: 95% non-condensing
Altitude: <= 5000 m
trait
Modular design: Designed to be mounted on the same backplane as the control CPU module for easy integration and expansion.
LED indicators: Use 4 LED indicators to display the status of ready, communication, error A and Error b.
ROP coaxial connectors: Below the LED area is the ROP coaxial connector area with connectors A and b.
Detachable hinged door: There is a detachable hinged door on the front for easy access and maintenance.
Electromagnetic compatibility: complies with standards such as antistatic discharge and anti-electromagnetic field.
effect
Data transfer: Two-way transfer of data between two modules, which are PCU and RIO drop modules located on different backplanes.
Industrial automation: As an important part of industrial automation systems, it is used for remote input/output control and data transmission.
