Description
Parameters and specifications:

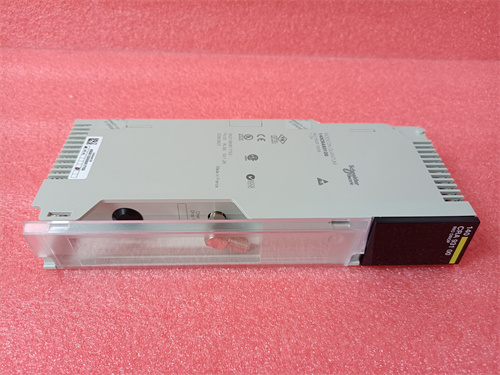

Model: 140CRA93100.
Manufacturer: Schneider Electric.
Series: Modicon Quantum series.
Type: I/O module.
Input voltage: 24VDC, 48VDC.
Output voltage: 24VDC.
Maximum output current: 10A.
Operating temperature range: -40℃ ~ +85℃.
Product size: 100mm x 50mm x 20mm.
Product weight: 0.3kg (or 0.60 lb).
Input channel: 8.
Redundancy: Dual power supply and processor.
Max I/O point: 384.
Communication protocol: Modbus, Ethernet, OPC.
Analog input number: 8.
Analog input resolution: 12 bits.
Bus current requirement: 240 MA.
Power consumption: 2W.
Features:
Conversion function: The analog signal collected by field equipment (such as sensors, transmitters, etc.) can be converted into a digital signal and transmitted to the control system.
Widely used: can be used to collect temperature, liquid level, pressure, flow and other field signals.
Certification: May have ATEX Zone 2/22 certification, meaning that an intense, thorough and detailed testing and inspection process has been carried out.
LED function: There is LED function on the top of the module, which is used to indicate the status of the module. For example, the green light indicates that the module has passed the power-on diagnosis, and the green Com operation indicator indicates that the module is communicating on the RIO network.
Operating environment adaptability: Independent at extended operating temperatures from -13 to 158 degrees Fahrenheit, with protective and insulating coatings against high dust environments, corrosion caused by chemical contact, condensation droplets or humidity.
Functions:
Monitoring and control: Through the transmission and processing of digital signals, to achieve the monitoring and control of field equipment.
Industrial automation: Widely used in the field of industrial automation, providing stable data acquisition and conversion functions for PLC and control systems.
