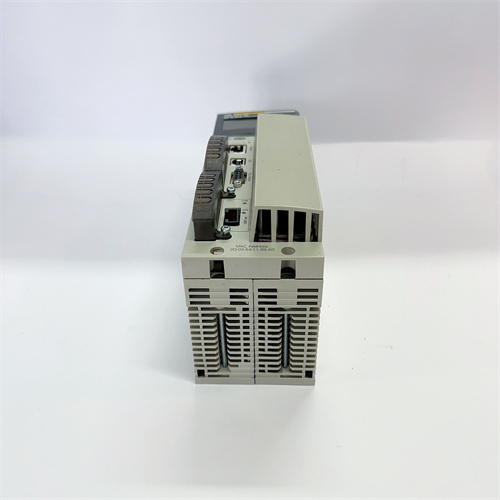

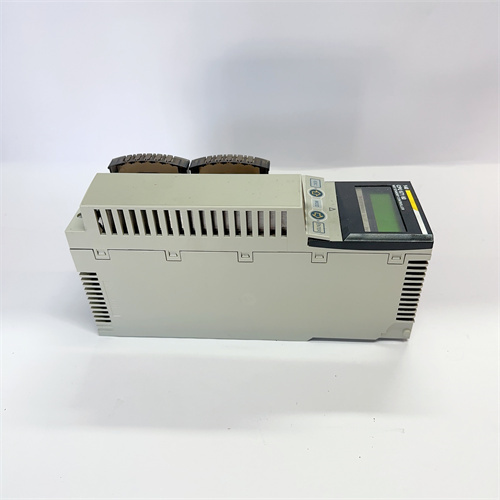

140CPU67160

Description

argument
Clock frequency: 266 MHz
Memory:
Internal RAM: 1024 kB and 512 kB are dedicated to data
Scalable file storage capacity: 8 MB via PCMCIA card
Expand program storage capacity: 7168 kB with PCMCIA card
I/O features:
Dedicated I/O includes counters, accurate timestamps, high-speed interrupt outputs, and serial links
Multiple connectivity options, including one USB port, two distributed AS interfaces, four remote AS interfaces, six local Modbus Plus connections, six local Profibus DP connections, one Modbus connector, and six local Ethernet TCP/IP connections
specification
CPU Type: Quantum Hot Standby CPU (HSBY)
Platform series: Modicon Quantum automation platform series
Standard: 2-line 16-character LCD with variable backlight status and contrast
Optional modules: Ethernet, Modbus, Modbus Plus, Profibus, DP, and Sy/Max
Size and weight
Size: One search result mentions common sizes for PLC modules (such as 90 x 100 x 81 mm), but please note that this is not specific to the exact size of the 140CPU67160.
Weight: about 0.3673 kg,
trait
Multi-mode Ethernet connectivity: Provides flexible communication options
Automatic backlight processing: The keyboard driver will automatically turn on the backlight when it detects the key, and automatically turn it off after 5 minutes, and the backlight will remain on when an error is detected
Highly adaptable and flexible: With a range of optional modules, different application requirements can be met
Security function: Key switch provides memory protection function to ensure system security
