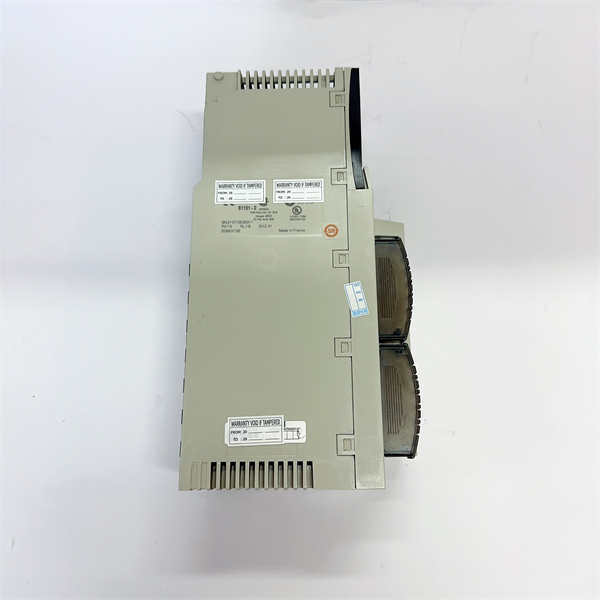

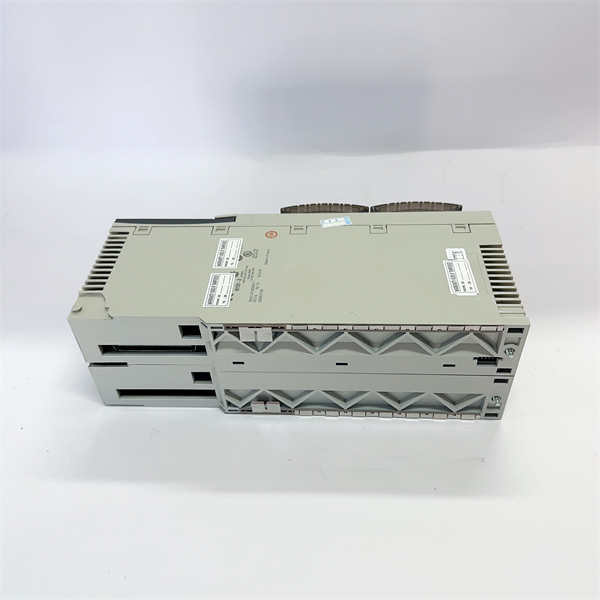

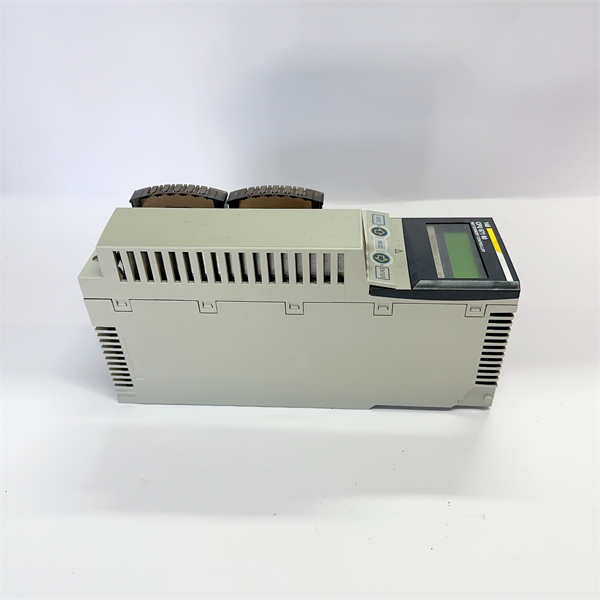

140CPU67160

Description

Slot: 2/3/4/ 6/16.
Local I/o: no restrictions (up to 27 slots), no restrictions (up to 26 slots).
Long range I/o: 31 x2 stations, 31 744 in and 31 744 out.
Distributed I/o: 63 x1 substations, 8,000 inputs and 8,000 outputs in each network.
I/o simulation: no restrictions (up to 27 slots), no restrictions (up to 26 slots).
Remote I/o: 1984 input and 1984 output.
Distributed I/o: 500 inputs and 500 outputs to each network.
Special input/o: Ben an type, counter, traffic control, high speed input interruption, serial connection, exact marking time.
Number of components for number of messages: Ethernet, modbus plus, profibus dp, sercos, sy /Max 2, 6.
The largest number of connections: modbus 2 integrated rs, 2 integrated rs 232 modbus /ASCII, 1 integrated rs 232/485 modbus /ASCII, modbus plus one integrated connection, a maximum of six connections at local stations, a maximum of six on local Ethernet TCP/IP frames, a maximum of local profibus dp stations, unlimited (up to 27 layers) at local as-interface stations, four of them at a long distance and two of the distributed.

The following are PLC parameters:

Brand: schneider/schneider.
Model: 140cpu67160.
Structural form: module.
Installation: in place.
I/o point: 1.
Function: 2.
Operating voltage: 3v.
Output frequency: 1hz.
