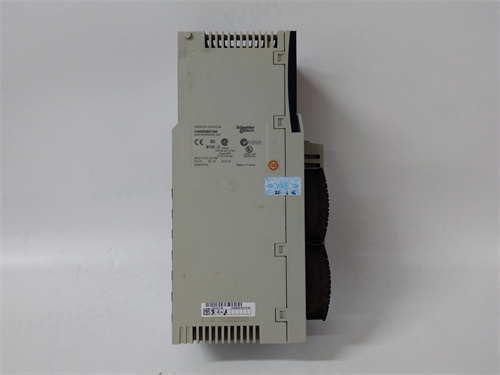

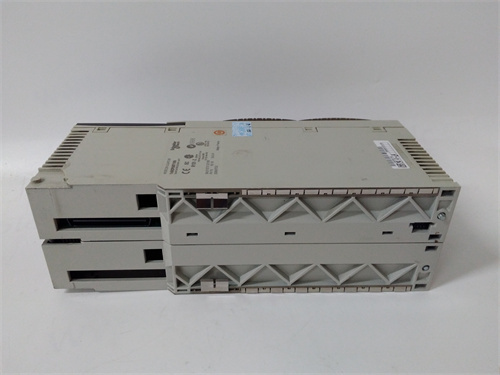

140CPU67160

Description

argument
Clock frequency: 266 MHz.
Memory capacity:
Internal RAM: 1024 kB and 512 kB are dedicated to data.
Scalable file storage capacity: 8 MB via PCMCIA card.
Expand program storage capacity: 7168 kB with PCMCIA card.
I/O features: Dedicated I/O includes counters, accurate timestamps, high-speed interrupt outputs, and serial links.
specification
Series: Modicon Quantum automation platform series.
Connection options:
A USB port.
Two distributed as interfaces.
Four remote AS interfaces.
Six local Modbus Plus connections.
Six local Profibus DP connections.
A Modbus connector.
Six local Ethernet TCP/IP connections.
Optional modules: Ethernet, Modbus, Modbus Plus, Profibus, DP, and Sy/Max.
Size and weight
Weight: According to the description of a specific product, the weight is about 0.3673 kg.
trait
LCD: There is an LCD that is covered by a lens cap and is standard configured as a 2-line 16-character LCD with variable backlight status and contrast.
Keyboard: Five keys map to hardware addresses, including two LED arrow keys.
Automatic backlight processing: The keyboard driver will automatically turn on the backlight when it detects the key, and automatically turn it off after 5 minutes, and the backlight will remain on when an error is detected.
Battery and reset button: Built-in battery and a reset button.
Security function: The key switch has a memory protection function and has two positions (lock and unlock) to control access to the system menu and module parameters.
