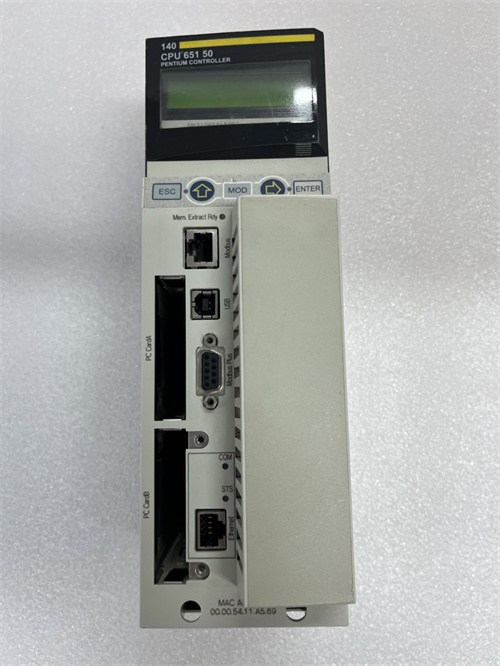

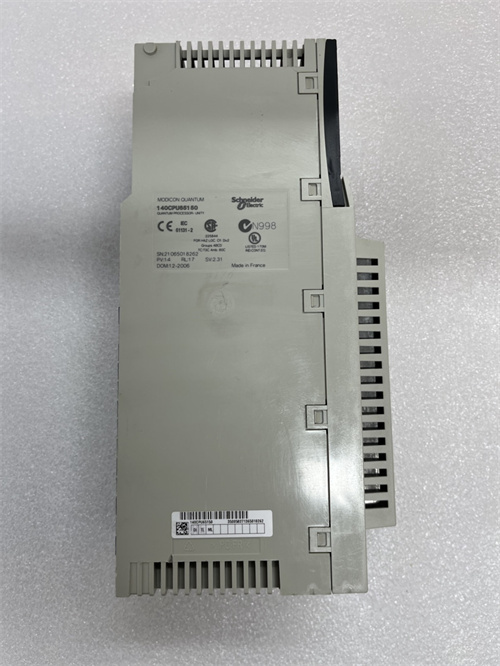

140CPU65150

Description

argument
Operating voltage: 3V (some information mentions input voltage ranges of 85-264V AC, 47-63 Hz or 110-370V DC)
Output frequency: 4Hz
Processing speed: 5μs
Clock frequency: 166 MHz
Data rate: 10/100 Mbps
specification
Program capacity: 12
Data capacity: 213
File storage: Expandable 8MB with PCMCIA card
Internal RAM: 768 Kb
Programming capacity: 7168 Kb (scalable)
Size and weight
Size:
115mm x 48mm x 150mm (one way of saying)
166mm x 112mm x 36mm (another word)
Weight: Approx. 1.2kg (one version) or 1.3kg (another version)
series
Product line: Modicon Quantum Automation platform, Unity series
trait
Self-diagnosis and monitoring function: to ensure the health of the system, to ensure the safety of signals and controls
Hot swap: Faulty modules can be replaced online, and I/O modules can be added or removed online without system restart
Environmental adaptability: The EMC protection capability reaches Level III and has obtained CE certification, which is suitable for G3 severely polluted environment
Communication capability: Use RJ-45 connection for communication, support Ethernet, Modbus, Modbus Plus, Profibus DP and other communication protocols
Scalability: Has expandable file storage and programming capacity
I/O capability: 8,000 discrete inputs and outputs in a distributed network and 31,744 discrete inputs and outputs in a remote system
Special Application I/O: Can be used as a timestamp, counter, high-speed interrupt input, and serial link
