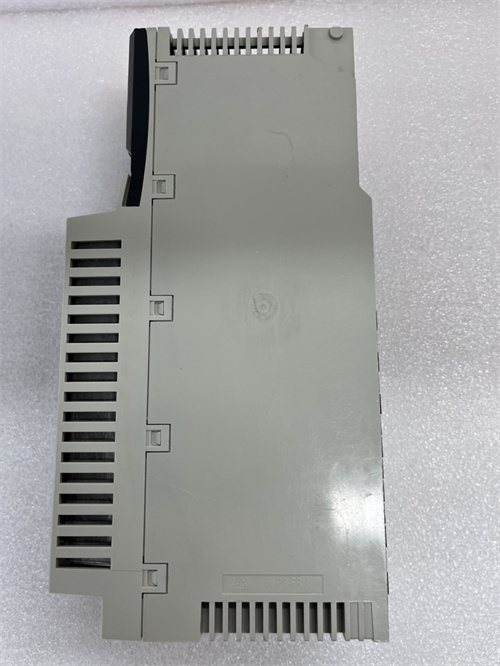

Description
trait
Versatility: Combines the standard functions of a PLC with the diagnostic capabilities of a web server.
Scalability: Supports the expansion of file storage through PCMCIA cards and allows the addition of a variety of optional modules, such as Ethernet, Modbus, etc.
High performance: with fast processing speed and large program and data capacity, to meet the needs of complex industrial applications.
Diagnostic function: With self-diagnosis function and monitoring function, to ensure the health of the system.
Hot swap: Faulty modules can be replaced online, and I/O modules can be added or removed online without system restart.
User interface: Equipped with a standard two-line 16-character LCD with adjustable contrast and backlight status for easy operation and monitoring.
Parameters and specifications
Operating voltage: May vary from application to application or configuration, but will usually have a range such as 85-264VAC or 110-370VDC.
Output voltage: 24VDC.
Output power: 360W or 450W, depending on the specifications from different sources.
Processing speed: 5μs.
Program capacity: 12kbyte (or higher, depending on software version and configuration).
Data capacity: 213 (or possibly higher, depending on model and configuration).
Clock frequency: 166 Mhz.
File storage: Scalable 8MB file storage with PCMCIA card.
Communication interface: RJ-45 connection, support Ethernet TCP/IP, Modbus, Modbus Plus and other communication protocols.
Size and weight
Size: There are two different size specifications mentioned. One is 115mm x 48mm x 150mm and the other is 166mm x 112mm x 36mm. This may be a size difference under different models or configurations.
Weight: about 1.2kg or 1.3kg
