Description
trait
Self-diagnosis function: to ensure the health of the system, to ensure the safety of signals and controls.
Monitoring function: Avoid any hidden faults.
Hot swap: Faulty modules can be replaced online, and I/O modules can be added or removed online without system restart.
Environmental adaptability: EMC protection capability reaches Level III, and has obtained CE certification, which is suitable for G3 severely polluted environment.
Integrated connectivity: Includes Ethernet, Modbus, Modbus Plus, and USB.
Web Services: Has web server capabilities, but is only used for diagnostics.
Display and backlight: A standard two-line 16-character LCD with adjustable contrast and backlight status.
Indicator: The yellow STS LED indicator is controlled by the coprocessor software and is used to indicate different states.
Parameters and specifications

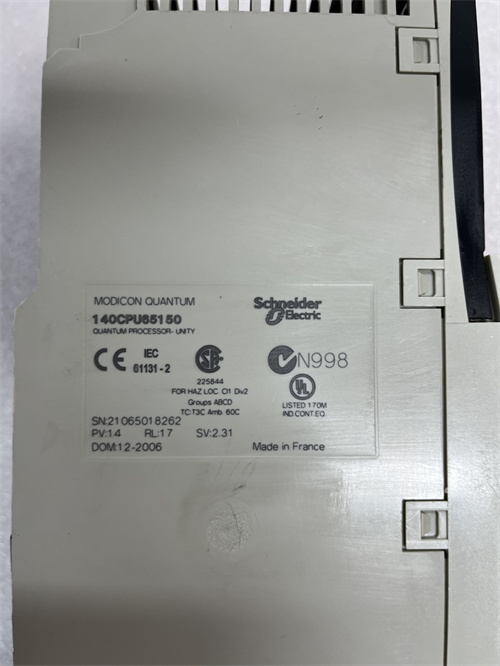

Series: Unity processor Modecon Quantum series.
Clock frequency: 166 Mhz.
Program capacity: 7168 kB or scalable programming.
Memory: 768 kB.
File storage: Scalable 8 MB file storage with PCMCIA card.
I/O points:
There are 8,000 discrete inputs and outputs in a distributed network.
There are 31,744 discrete inputs and inputs in the remote system.
Distributed I/O stations: 63.
Local rack: Two.
Distributed networks: 3.
Connection type: Ethernet TCP/IP, Modbus, Modbus Plus, and USB.
Data rate: 10/100 Mbps.
Memory port: Key switch memory port.
Size and weight
Size:
115mm x 48mm x 150mm (one possibility).
166mm x 112mm x 36mm (another possibility).
Weight:
About 1.2kg (one possibility).
1.3 kg (another possibility).
