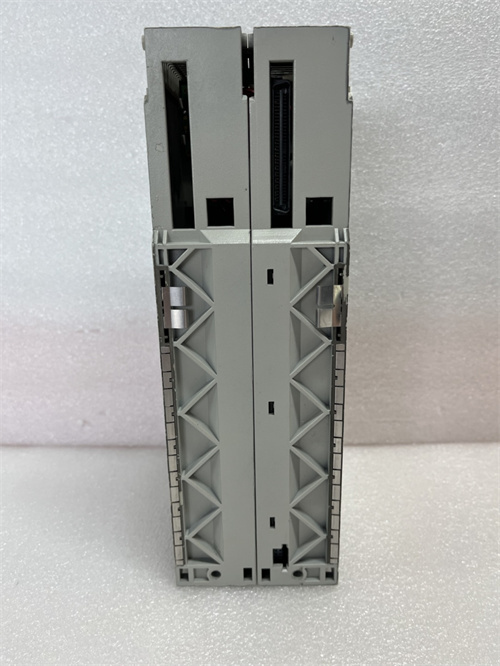

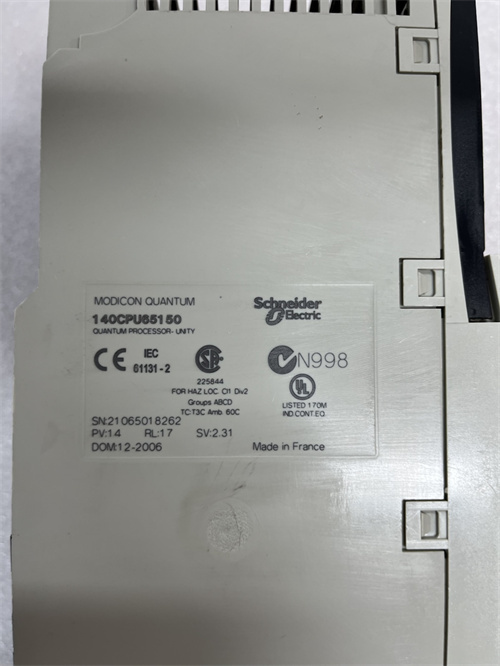

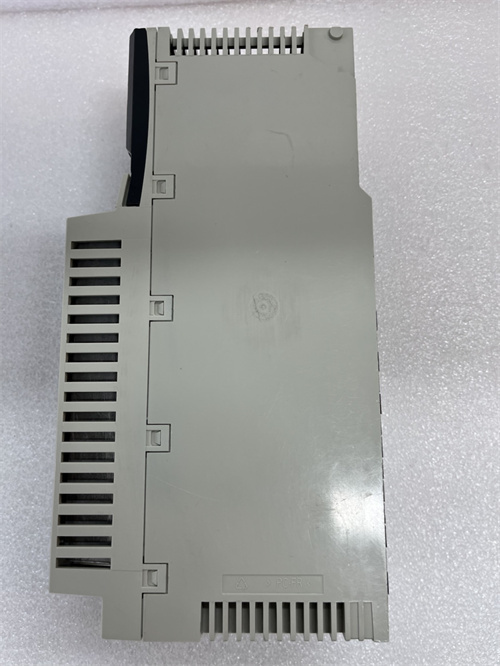

140CPU65150

Description

1. Product Description

2. Product Parameters

• Processor: 32-bit RISC processor
• Operating Frequency: 200 MHz
• Memory:
  • User program memory: 6 MB
  • Data memory: 4 MB
  • Retentive memory: 256 KB
• Communication Interfaces:
  • Ethernet: 10/100 Mbps, supports Modbus TCP and Ethernet/IP protocols
  • Serial: RS-232/RS-485, supports Modbus RTU protocol
• Input/Output (I/O) Capacity: Can manage a large number of I/O points, up to 8,192 digital I/O and 512 analog I/O points
• Power Supply: 24 V DC or 110/220 V AC
• Compatibility: Compatible with other modules in the Modicon Quantum series, such as I/O modules and communication modules
• Operating Temperature: 0°C to 60°C
• Humidity: 5% to 95% (non-condensing)

3. Advantages and Characteristics

• High Reliability: The 140CPU65150 is built with high-quality components and advanced manufacturing techniques. It has a long mean time between failures (MTBF), which is estimated to be over 100,000 hours. In a continuous operation manufacturing plant, it has been proven to operate stably for years without significant breakdowns, ensuring the uninterrupted production process.
• Easy Integration: With its support for multiple communication protocols like Modbus TCP, Ethernet/IP, and Modbus RTU, it can be easily integrated into existing industrial networks. For example, in a factory automation upgrade project, integrating the 140CPU65150 into the existing system only took a few days, reducing the downtime of the production line.
• Powerful Processing Capability: The 32-bit RISC processor running at 200 MHz enables it to execute complex control programs quickly. It can process up to 1,000 logic instructions in just 0.05 milliseconds, which is much faster than many similar products in the market. This high processing speed improves the overall efficiency of the control system.
• Large Memory Capacity: The 6 MB of user program memory and 4 MB of data memory provide ample space for storing complex control algorithms and large amounts of data. This is particularly useful in applications where a large number of variables and control logic need to be managed.

4. Application Areas and Application Cases

• Application Areas: The 140CPU65150 is widely used in various industries such as manufacturing, energy, and automation control. In the manufacturing industry, it is used in production line control, robotic control, and quality control systems. In the energy industry, it can be applied to power generation, transmission, and distribution systems for monitoring and control. In automation control, it is used in building automation systems, process control systems, and industrial machine control.
• Application Case: In a large-scale automotive manufacturing plant, the 140CPU65150 is used to control the entire production line. It manages the operation of robotic arms for welding, painting, and assembly processes. By precisely controlling the movement and operation of the robotic arms, it ensures the quality and efficiency of the automotive production. The high processing speed and large memory capacity of the 140CPU65150 allow it to handle the complex control programs required for these tasks, reducing production errors and increasing productivity by 20%.

5. Comparison with Similar Products

6. Selection Suggestions

• Compatibility: When selecting the 140CPU65150, ensure that it is compatible with your existing I/O modules, communication modules, and other components in the control system. Check the communication protocols and electrical interfaces to ensure seamless integration.
• Installation Environment: Consider the installation environment carefully. The module should be installed in a clean, dry, and well-ventilated place within the specified operating temperature range of 0°C to 60°C. Avoid installing it in areas with high humidity, strong electromagnetic interference, or excessive dust.
• Budget: While the 140CPU65150 offers high performance and reliability, it is important to consider your budget. Compare the cost of the module with other similar products in the market, and also take into account the long-term maintenance and operation costs. Consider the return on investment in terms of improved productivity and reduced downtime.

7. Precautions

• Safety Specifications: When installing and using the 140CPU65150, follow all relevant safety regulations. Ensure that the power supply is within the specified range and that proper grounding is provided to prevent electrical shock and damage to the module.
• Maintenance Suggestions: Regularly check the status of the module, including the power supply, communication connections, and temperature. Clean the module periodically to remove dust and debris. Update the firmware of the module regularly to ensure the latest features and security patches are installed. If any abnormal behavior or error messages are detected, refer to the user manual for troubleshooting steps or contact a professional technician for assistance.
