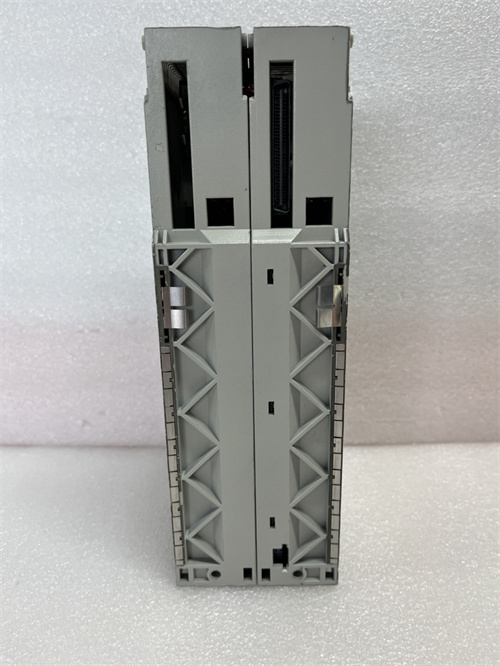

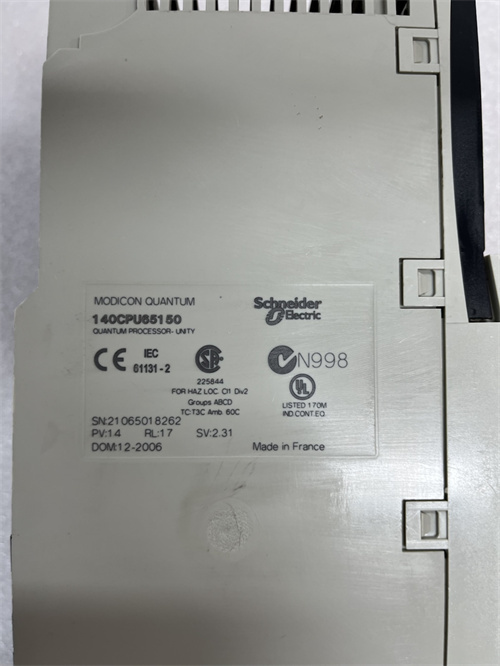

140CPU65150

Description

argument
Operating voltage: Basic operating voltage is 3V (additional information indicates input voltage is 24VDC, output voltage is also 24VDC, input voltage range includes 85-264V AC, 47-63 Hz or 110-370V DC)
Output frequency: 4Hz (but different sources may not mention this parameter)
Processing speed: 5μs
Memory/frequency: 768kB/166MHz (other possible configurations such as 548kB/66MHz, etc.)
Program capacity: 21 (otherwise indicated as 12)
Data capacity: 213 (additional information indicates 12)
specification
Clock frequency: 166 MHz
I/O points: Not given directly, but the module has 63 distributed I/O stations, 8,000 discrete inputs and outputs in a distributed network, and 31,744 discrete inputs and outputs in a remote system
File storage: Expandable 8MB file storage
Programming capacity: 7168 kB or scalable
Size and weight
Dimensions: 166mm x 112mm x 36mm (Additional information is given in inches, but can be converted to mm)
Weight: 1.3 kg
series
Unity processor Modecon Quantum series
trait
Self-diagnosis function: It has self-diagnosis function and monitoring function to ensure the system health status
Hot swap: Faulty modules can be replaced online, and I/O modules can be added or removed online without system restart
Environmental adaptability: The EMC protection capability reaches Level III and has obtained CE certification, which is suitable for G3 severely polluted environment
Communication capability: Communication using RJ-45 connection with 4 integrated connection types (Ethernet TCP/IP, Modbus, Modbus Plus, and USB)
Network services: Provides standard web services, Modbus TCP messages, I/O scanning services and other services
Indicators and keyboard: Features panel indicators for status alerts, a standard two-line 16-character LCD, and a keyboard for accessing mapped hardware addresses
effect
140CPU65150 combines the standard functions of a PLC with the diagnostic capabilities of a network server to control and monitor a variety of equipment and systems, suitable for industrial automation.
