Description
series

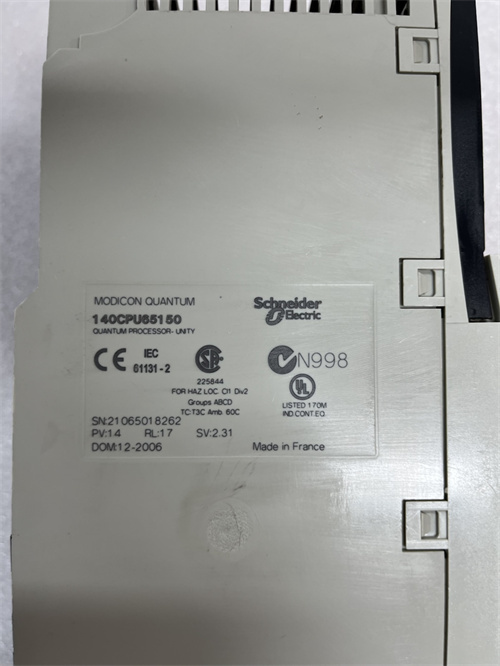

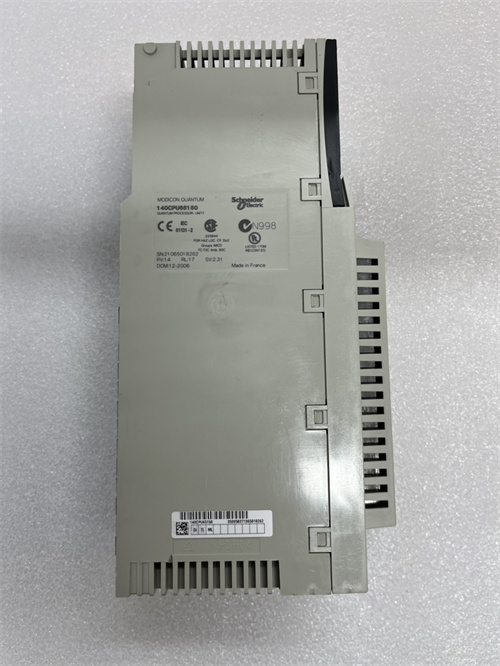

140CPU65150 belongs to the Modecon Quantum series in Schneider Electric’s Unity family.
trait
Self-diagnosis and monitoring functions: ensure the health of the system, ensure the safety of signals and controls, and avoid hidden faults.
Hot swap: Faulty modules can be replaced online, and I/O modules can be added or removed online without system restart.
Environmental adaptability: It has good environmental adaptability, EMC protection ability reaches level III, and has obtained CE certification. All electronic components are suitable for G3 severely polluted environment.
Communication capability: Communication using an RJ-45 connection, with web server functionality (for diagnostic purposes only).
Integrated connection type: Includes Ethernet TCP/IP, Modbus, Modbus Plus, and USB.
Extensibility: Support for several optional modules such as Ethernet, Modbus, Modbus Plus, Profibus DP and Sy/Max.

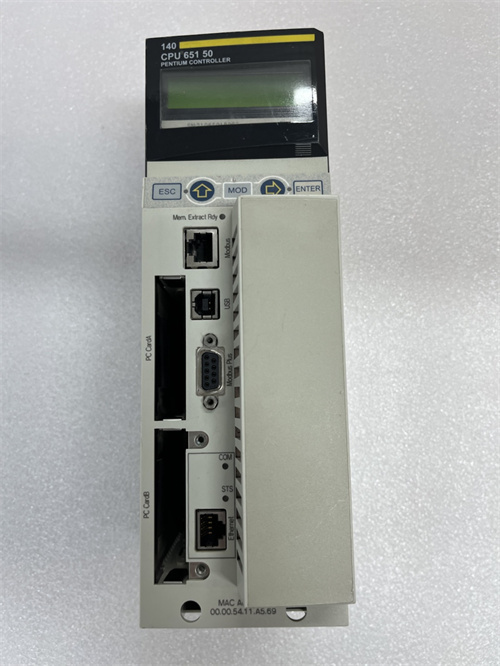

User interface: Features a standard two-line 16-character LCD with adjustable backlight and contrast.
effect
140CPU65150 Used to control and monitor various devices and systems. It combines the standard functions of a PLC with the diagnostic capabilities of a web server and is suitable for industrial automation applications that require high performance, high reliability and scalability. Through its rich interface and powerful processing power, the 140CPU65150 ensures the stable operation and efficient production of industrial automation systems.
Parameters and specifications
Operating voltage: The input voltage range is usually 85-264V AC, 47-63 Hz or 110-370V DC and the output voltage is 24V DC.
Output power: 450W.
Processing speed: up to 5μs.
Clock frequency: 166 Mhz.
Program capacity: 21 (data capacity 12), but other sources indicate program capacity 12 and data capacity 213, which may refer to different parameters or data differences.
Memory: Has 7168 kB or expandable programming space and 768 kB of memory, as well as 8 MB of expandable file storage.
Data rate: 10/100 Mbps.
Size and weight
Dimensions: 166mm x 112mm x 36mm
Weight: Approx. 1.3 kg.
