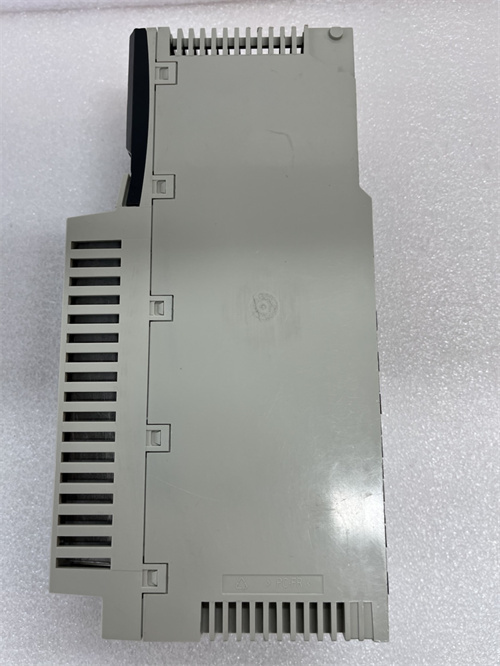

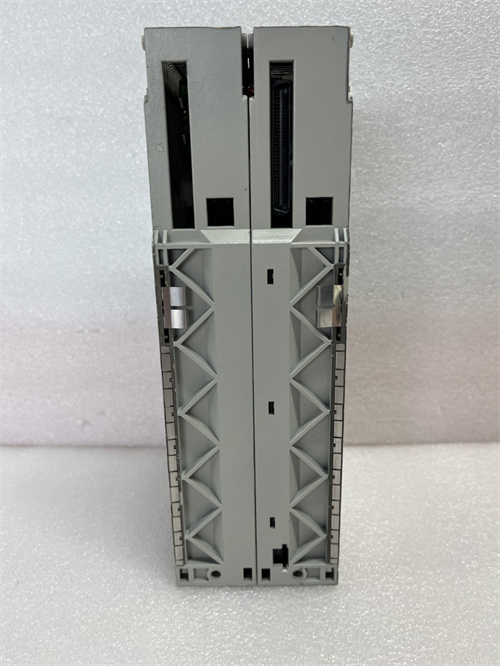

140CPU65150

Description

1.‌Parameters‌:
–‌Clock Frequency‌: 166 Mhz, providing high processing power1.
–‌Output Frequency‌: 4Hz (as mentioned in one source2, but note that this may differ from the standard PLC output frequencies).
–‌Processing Speed‌: 5μs, indicating fast response times2.

2.‌Specifications‌:
–‌Memory‌: Features an expandable 8 MB file storage, 7168 kB or expandable programming, and 768 kB of RAM31.
–‌Connectivity‌: Uses RJ-45 connections for communication and supports Ethernet TCP/IP, Modbus, Modbus Plus, and USB for integrated connectivity1.
–‌Software Compatibility‌: Only compatible with Unity Pro software1.

3.‌Dimensions & Weight‌:
–‌Dimensions‌: The exact dimensions are not specified, but it is designed to fit into the standard Quantum shell requiring two continuous slots1.
–‌Weight‌: Approximately 1.2 kg, as mentioned in one source

4.‌Series‌:

• Belongs to the Unity series of processor modules manufactured by Schneider Electric.

5.‌Features‌:
–‌Web Server Diagnostics‌: Combines PLC standard functionalities with web server diagnostic capabilities1.
–‌Hot-Swappable‌: Supports hot-swapping, allowing for online replacement of faulty modules without system restart2.
–‌Self-Diagnostics & Monitoring‌: Equipped with self-diagnostic and monitoring features to ensure system health and prevent hidden faults2.

6.‌Functions‌:
–‌Central Processing‌: Acts as the central processing unit (CPU), executing user and system programs for control, processing, and communication4.
–‌Data Acquisition & Transmission‌: Utilized in modern industrial automation systems for data acquisition, transmission, and control5.
–‌Distributed I/O & Networking‌: Supports up to 63 distributed I/O stations, 1 rack, and 3 distributed networks, with 8000 discrete I/O in the distributed network and 31744 in the remote system
