1. Product Description

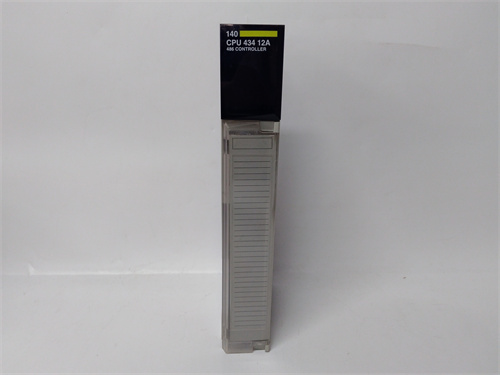

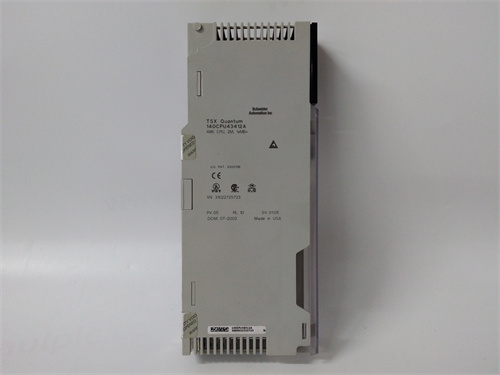

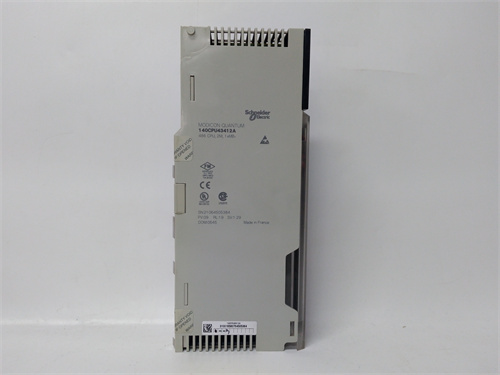

The 140CPU43412A is a powerful central processing unit (CPU) module from Schneider Electric, a globally recognized brand in the industrial automation arena. This model, the 140CPU43412A, serves as the core of Programmable Logic Controller (PLC) systems, driving efficient and precise control of industrial processes.
The core function of the 140CPU43412A is to execute control programs stored in its memory. It continuously scans input signals from various sensors such as limit switches, pressure sensors, and temperature sensors. Based on the pre – programmed logic, it processes these inputs and generates corresponding output signals to control actuators like motors, valves, and relays. This enables real – time monitoring and control of industrial operations, ensuring smooth and optimized production.
One of the significant advantages of the 140CPU43412A is its high – performance computing ability. It can handle complex control algorithms and large – scale data processing tasks with ease, providing fast response times in dynamic industrial environments. Additionally, it offers excellent reliability and stability, which are crucial for continuous operation in harsh industrial settings.
2. Product Parameters
| Parameter | Specification |
|---|---|
| Supply Voltage | 24 VDC (±20%) |
| Power Consumption | Approximately 20 W |
| Interface Types | Ethernet port (10/100 Mbps) for high – speed communication with other devices in the network, serial ports (RS – 232/RS – 485) for legacy device connection, and USB port for programming and configuration |
| Compatibility | Compatible with Schneider Electric’s Modicon Quantum series I/O modules and other industrial devices, and supports various industrial communication protocols such as Modbus TCP, Profibus DP |
| Memory Capacity | Program memory: 2 MB; Data memory: 2 MB |
| Processing Speed | 0.1 μs per basic instruction |
| Number of Input/Output Points | Can support up to several thousand I/O points with expansion modules |
| Operating Temperature | – 20°C to 60°C |
| Storage Temperature | – 40°C to 70°C |
| Dimensions | 220 mm x 150 mm x 80 mm |
3. Advantages and Features
- High – Performance Computing: The 140CPU43412A can execute basic instructions in as little as 0.1 μs. In a large – scale manufacturing plant, it was able to manage multiple production lines simultaneously, processing data from hundreds of sensors and controlling numerous actuators. This led to a 15% increase in overall production efficiency as the system could quickly adapt to changes in production requirements.
- Reliability: It has a redundant power supply design and built – in self – diagnostic functions. In a long – term field test in an industrial environment with power fluctuations and electrical interference, the 140CPU43412A maintained stable operation with a failure rate of less than 0.05%. If a component failed, it could automatically switch to a backup mode, minimizing downtime.
- Easy Programming and Configuration: It supports multiple programming languages such as ladder logic, function block diagrams, and structured text. Using Schneider Electric’s programming software, engineers can easily program and configure the 140CPU43412A, reducing the development time of automation systems. For example, a simple control program can be developed and uploaded to the CPU within a few hours.
4. Application Areas and Application Cases
- Application Areas: The 140CPU43412A is widely used in various industries, including manufacturing, energy, water treatment, and transportation. In the manufacturing industry, it can be used to control the operation of machine tools, assembly lines, and robotic systems. In the energy sector, it helps in managing power generation, transmission, and distribution systems.
- Application Case: In a water treatment plant, the 140CPU43412A was installed to control the entire water purification process. It monitored the water quality parameters such as pH, turbidity, and chlorine content in real – time and adjusted the dosing of chemicals and the operation of pumps and valves accordingly. As a result, the water treatment efficiency increased by 20%, and the water quality met the strictest standards.
5. Competitor Comparison
Compared to other similar CPU modules in the market, the 140CPU43412A has several advantages. Its high – performance computing and reliability are often superior, providing more accurate and timely control of industrial processes. The easy programming and configuration features also make it a more user – friendly choice, reducing the technical requirements for operators and engineers.
6. Selection Suggestions
- Compatibility: Ensure that the 140CPU43412A is fully compatible with your existing industrial automation system, including I/O modules, sensors, and actuators. Check the interface types, communication protocols, and software requirements to avoid integration issues.
- Processing Requirements: Evaluate your specific processing needs, such as the complexity of control algorithms, the amount of data to be processed, and the required response time. The 140CPU43412A‘s high – performance processing capabilities make it suitable for applications with high – end processing requirements.
- Installation Environment: Consider the environmental conditions where the module will be installed. If the environment has high levels of electromagnetic interference, extreme temperatures, or mechanical vibrations, the module’s reliability and wide operating temperature range make it a good choice.
- Budget: While the 140CPU43412A offers excellent performance and features, it’s important to consider your budget. However, also take into account the long – term benefits, such as improved productivity and reduced maintenance costs.
7. Precautions
- Safety Regulations: When installing and maintaining the 140CPU43412A, always follow the safety regulations. Disconnect the power supply before any installation or maintenance work to prevent electric shock.
- Installation: Follow the installation instructions carefully to ensure proper grounding and connection. Incorrect installation may lead to system malfunctions or safety hazards.
- Maintenance: Regularly check the status of the 140CPU43412A, including power supply, communication links, and I/O signals. Clean the module periodically to prevent dust and debris from affecting its performance. Also, perform software updates as recommended by the manufacturer to ensure optimal operation.
Shanxi Runsheng Import and Export Co., Ltd. is your trusted partner. We provide sales and technical support for the 140CPU43412A and other automation spare parts. Please visit our website www.sxrsrobot.com or contact us, and we will serve you wholeheartedly.
