Description
Parameters:
–Input Voltage: Accepts a wide range of AC input voltages, including 230VAC (170-276VAC) and 115VAC (93-138VAC), with a frequency range of 47-63Hz1.
–Output Current: Provides 600mA at 230VAC and 1100mA at 115VAC, ensuring sufficient power for connected devices1.
Specifications:
–Peak Current: Capable of delivering peak currents of 38A at 115VAC and 19A at 230VAC, ideal for handling transient loads1.
–Rated Power: 130VA, indicating its power handling capabilities1.
Dimensions & Weight:
–Dimensions: Measures approximately 132mm x 105mm x 52mm, allowing for compact installation in industrial control cabinets2.
–Weight: Approximately 3.7kg, ensuring stable mounting and easy handling3.
Series:
- Part of Schneider Electric’s Modicon Quantum series, a range of high-performance PLCs and I/O modules designed for complex industrial automation applications4.
Features:
–Redundancy: Provides redundancy, enhancing system reliability and uptime -
–Protection: Equipped with appropriate fuses and protection mechanisms to prevent damage from overcurrent or short circuits1.
–IP30 Enclosure: Features an IP30-rated enclosure, providing a basic level of protection against dust and accidental contact2.
Functions:
–Power Supply: Acts as the primary power source for Modicon Quantum PLCs and other components within the industrial automation system1.
–System Stability: Ensures stable power output, reducing the risk of voltage fluctuations and maintaining reliable operation of connected devices1.
–Compatibility: Designed for use with Schneider Electric’s Modicon Quantum series, facilitating seamless integration into existing automation systems4.
Conclusion:

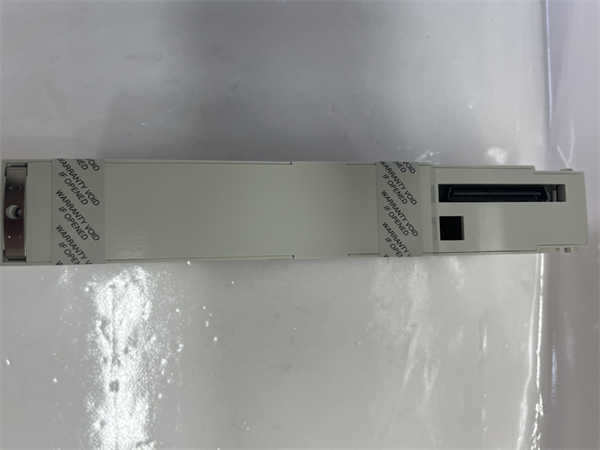

The 140CPS12420 is a robust and reliable power supply module from Schneider Electric’s Modicon Quantum series. Its wide input voltage range, high peak current capabilities, and compact design make it an ideal choice for industrial automation applications. Its redundancy feature and IP30 enclosure further enhance its value by improving system reliability and providing basic environmental protection.
