Description
Parameters & Specifications:

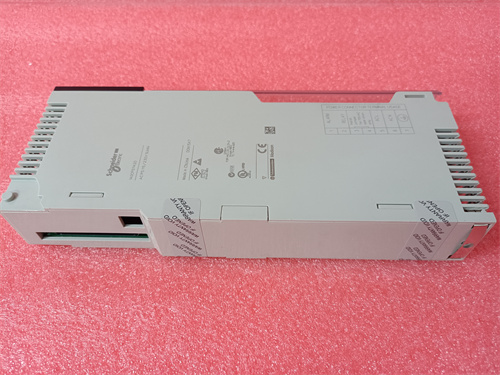

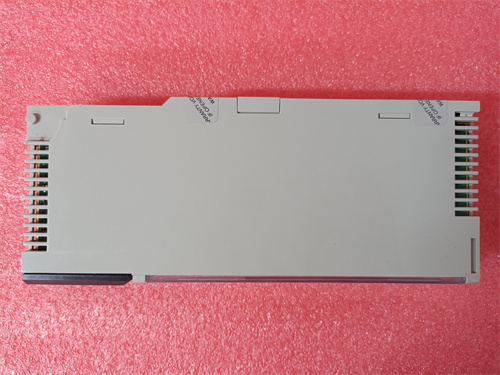

–Model: 140CPS1142012.
–Input Voltage: Supports 230VAC (170~276V) and 115VAC (93~132V), with a frequency range of 47~63Hz1.
–Output Voltage: Outputs 5.1Vdc1.
–Output Current: 750mA at 230V and 1300mA at 115V1.
–Peak Current: 38A at 115V and 19A at 230V1.
–Power Rating: 130VA1.
–Power Consumption: Base consumption of 6W, increasing with output current (1.5x output current)1.
Dimensions & Weight:
–Dimensions: Exact dimensions may vary, but typical power supply modules are compact for easy installation1.
–Weight: Approximately 0.82kg, as mentioned in one source
Series:
–Series: Modicon Quantum Series12.
Features:
–Versatility: Supports both 115VAC and 230VAC input voltages, making it suitable for global applications1.
–Certifications: Compliant with RoHS standards and certified by CUL1.
–Design Flexibility: Can be stacked or used independently, providing flexibility in system design1.
–High Reliability: Features a 2A slow-blow fuse for added protection against electrical faults1.
Functions:
–Power Supply: Provides stable DC power to the Modicon Quantum PLC system, ensuring reliable operation1.
–System Support: Essential for maintaining the performance of the PLC and its connected devices1.
–Wide Application Range: Suitable for various industries, including machine tools, textile machinery, printing machinery, and more
