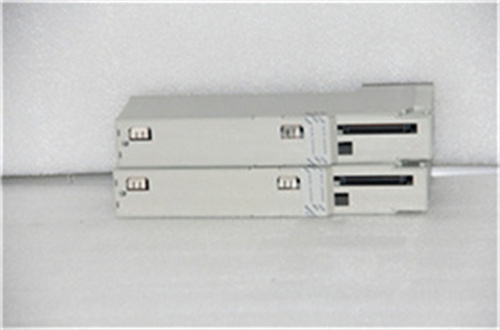

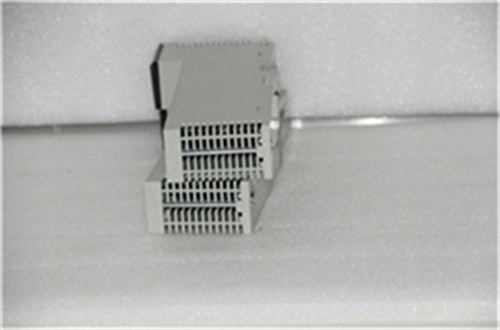

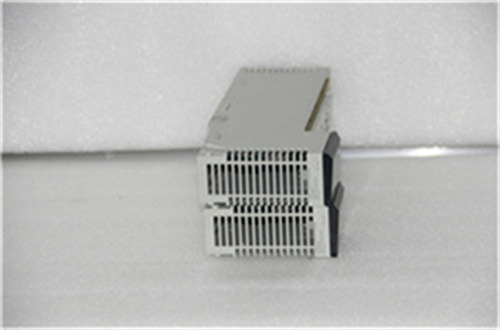

140ACI04000

Description

Parameters:

Input quantity/Power consumption: 16 channels /5W
Address Requirement: 17 Enter a word
Analog input resolution:
0 to 4095 Counts 4 to 20mA
0 to 25000 The count ranges from 0 to 25mA
0 to 20000 The value ranges from 0 to 20mA
0 to 16000 Counting 4 to 20mA
Absolute maximum input: 30mA
Input impedance: 250 ohms
Absolute accuracy error: +/-0.125% full scale
Linearity error:
Max. +/-6 μA 4 to 20mA
Max. +/-6μA 0 to 25mA
Max. +/-6μA 0 to 20mA
Max. +/-12 μA 4 to 20mA
Temperature deviation accuracy: <= 0.0050% full scale /℃; +/ -0.0025% full scale /℃ Common mode suppression: >-90dB 60Hz
Required bus current: 360mA

Specifications:

Product type: Analog input module
Filter type: Unipolar low-pass -3 dB at 34 Hz +/ -25%
Fault type: Disconnected 4 to 20mA

Size and weight:

Overall dimension: 132mm105mm52mm
Net weight: 800g (approx.)

Features:

Versatility: Supports multiple current ranges (4-20mA, 0-20mA, 0-25mA) and resolutions
High accuracy: Provides high accuracy and linearity
Stability: Low temperature deviation accuracy to ensure stability at different temperatures
Common mode rejection: Provides high common mode rejection to reduce electromagnetic interference
