Description
Parameters and specifications:
Input quantity/Power consumption: 16 channels, power consumption 5W.
Address Requirement: 17 Enter a word.
Analog input resolution: multiple modes, such as 0 ~ 4095 count (4 ~ 20mA); 0 ~ 25000 count (0 ~ 25mA); 0 ~ 20000 count (0 ~ 20mA); 0 ~ 16000 count (4 ~ 20mA).
Absolute maximum input: 30mA.
Input impedance: 250 ohms.
Absolute accuracy error: +/-0.125% full scale.
Linearity error: Max +/ -6μA (4 ~ 20mA, 0 ~ 25mA, 0 ~ 20mA); Max. +/-12 μA (4 ~ 20mA).
Temperature deviation accuracy: <= 0.0050% full scale /℃; +/ -0.0025% full scale /℃.
Common mode suppression: >-90dB 60Hz.
Fault type: Disconnected (4 to 20mA).
Required bus current: 360mA.
Size and weight:
Mechanical characteristics: Overall size 132mm105mm52mm, net weight 800g.
Series:

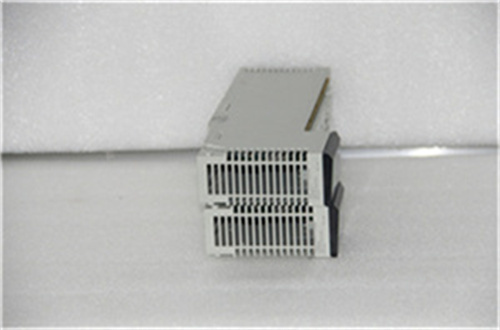

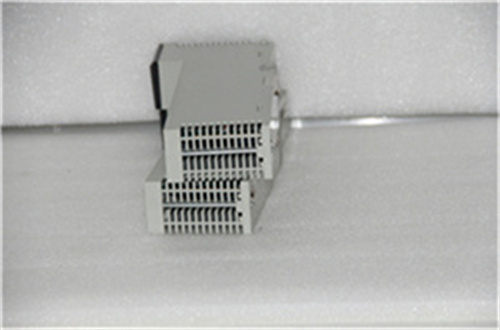

The 140ACI04000 is part of the Modicon X80 module family, a common family for the Modicon M580 and Modicon M340 platforms.
Features:
High-performance PLC module: provides reliable and accurate data acquisition and control functions.
Communication Protocol support: Multiple communication protocols such as Modbus TCP/IP, EtherNet/IP and Profinet are supported for seamless integration with other devices and systems in industrial networks.
Input type: Support voltage or current input, voltage input range is 0-10V, current input range is 0-20mA.
Input and output channels: In addition to the analog input function, there are 4 digital input channels and 4 digital output channels, which can be used to monitor and control various devices and systems.
Functions:
140ACI04000 is an analog input module, mainly used in industrial automation systems, responsible for collecting analog signals (such as voltage, current, etc.) and converting them into digital signals for PLC or other control systems for processing and analysis. At the same time, its digital output channels can also be used to control other devices or systems.
