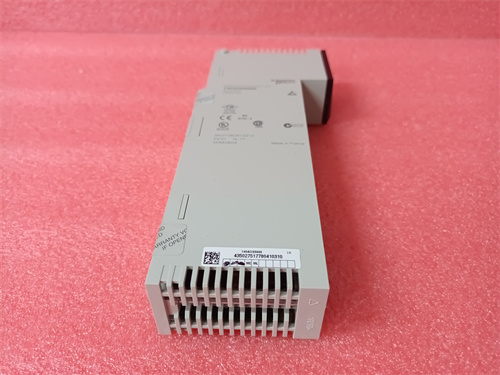

140ACI03000C

Description

trait
Multi-range analog input: supports a variety of signal range inputs
High precision: Provides high precision analog input
High isolation: High insulation between each channel and the bus
Rich interfaces: Multiple built-in ports (such as USB port, Ethernet TCP/IP port, etc.) on the front panel
Easy integration: It can be easily integrated into Modicon Quantum systems and supports multiple IEC languages

Parameters and specifications
Number of analog inputs: 8
Input type: differential
Address requirements: 9 input words
Analog input resolution: 12 bits
Linear measurement range:
1… 5 V
4… 20 mA
Input impedance:
50 V DC 25 mA
250 Ω current +/ -0.01% > 20 MΩ voltage
Accuracy error:
+/ -0.1% at full scale
+/ -0.05% of full scale
Linearity error: +/ -0.04%
Accuracy drifts with temperature:
0.005%/°C of full scale
+/ -0.0025% /°C at full scale
Common mode suppression: > -72 dB 60 Hz
Insulation between each channel and bus:
1000 V DC
3000 V DC (for 60 seconds)
Channel isolation: 30 V DC
Update time: 5 milliseconds
Fault type:
Undervoltage range 1… 5 V
Broken wire 4… 20 mA
Size and weight
Size: May vary depending on the specific model and packaging, but the general industrial grade PLC module size is more standard, such as a search result mentioned the relevant size of 170mm x 105mm x 32mm, but this may not be the exact size of 140ACI03000C, please take this as a reference.
Weight: Approximately 0.3kg
