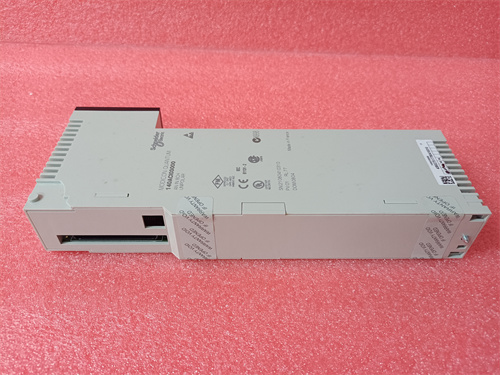

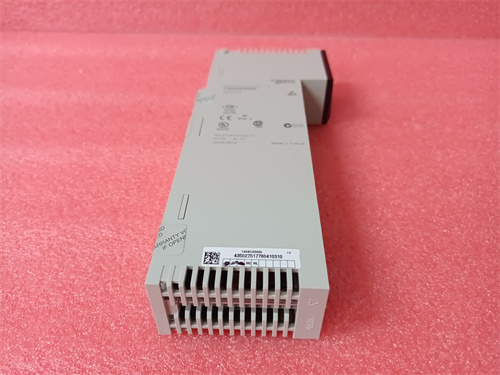

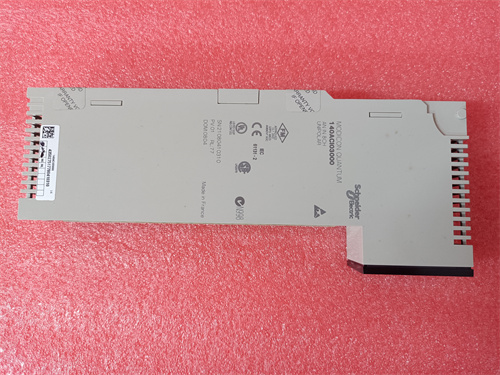

140ACI03000

Description

‌Parameters and Specifications‌:

–‌Product Series‌: Modicon Quantum Automation Platform12.
–‌Product Type‌: Analog Input Module12.
–‌Input Quantity‌: 8 analog inputs12.
–‌Input Resolution‌: 12 bits12.
–‌Input Types‌: Differential, supporting 4-20mA or 1-5VDC12.
–‌Accuracy‌:

• Current: ±0.03%1, ±0.01% in another source2.
• Voltage: ±0.05% of full scale
•
  ‌Dimensions and Weight‌:

–‌Dimensions‌: 170mm x 105mm x 32mm4.
–‌Weight‌: Approximately 120g4 or 0.3kg15.
‌Series‌:

• Belongs to the Modicon Quantum PAC (Programmable Automation Controller) series from Schneider Electric23.
  ‌Features‌:

–‌High Resolution‌: Offers 12-bit resolution for precise analog signal acquisition12.
–‌Multi-Range Inputs‌: Supports both 4-20mA and 1-5VDC input signals12.
–‌High Accuracy‌: Provides high accuracy for current and voltage inputs12.
–‌LED Indicators‌: Equipped with LED indicators for bus communication status, external faults, channel status, etc.12.
–‌Isolation‌: Provides isolation between channels and the bus, enhancing system reliability12.
‌Applications‌:

–‌Industrial Automation‌: Widely used in industrial automation systems for monitoring and controlling analog signals62.
–‌Process Control‌: Essential in process control applications requiring precise measurement and control of process variables23.
–‌Compatibility‌: Compatible with Unity Pro software and supports traditional 984 ladder logic programs
