Description
Parameters and specifications:
Number of analog inputs: 8.
Analog input resolution: 12 bits.
Linear measurement range: Support 1… 5 V and 4… 20 mA.
Absolute maximum input: 50 V DC and 25 mA.
Input impedance: 250Ω in voltage mode, > 20Ω in current mode.
Address requirements: 9 input words.
Absolute accuracy error: ±0.05% full scale to ±0.1% maximum full scale.
Temperature deviation accuracy: ±0.0025% full scale /°C, maximum ≤ ±0.005% full scale /°C.
Update time: 5 milliseconds.
Bus current requirement: 240 MA.
Power consumption: 2W.
Size and weight:
Dimensions: There are many sizes, such as 96×96×110 mm, 160×80×110 mm and so on.
Weight: Approx. 0.3 kg.
Series:
This module belongs to the analog input module series under the Modicon Quantum automation platform.
Features:
High common-mode rejection: Provides high common-mode rejection (> -72 dB 60 Hz) and interchannel isolation (30 V DC).
Differential analog input channels: Each channel can be configured as 1… 5 VDC or 4… 20 mA signal.
Line break detection and undervoltage detection: It has line break detection in current mode and undervoltage detection in voltage mode.
Hot swap: All Quantum I/O modules are optically isolated from the bus, allowing modules to be hot swappable.
Functions:

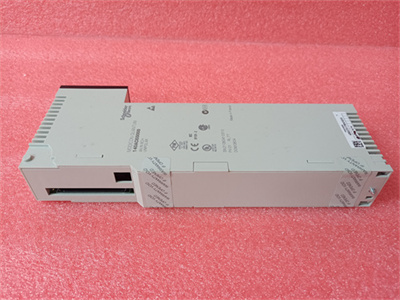

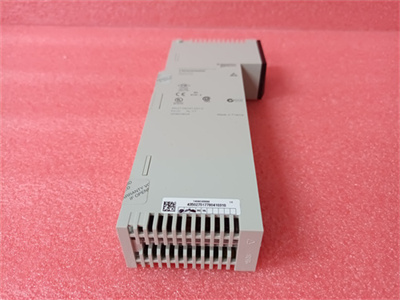

140ACI03000 analog input module is suitable for temperature, pressure, liquid level, flow, weight and other industrial process parameters measurement, display and control.
It is particularly suitable for industries that require continuous operation and achieve efficient cycle times, such as injection molding machines, printing presses, stapler machines, etc.
