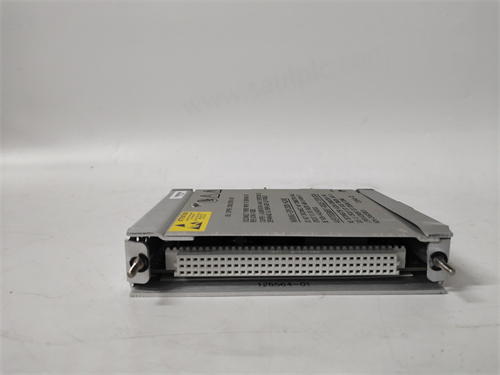

BENTLY 125840-02
¥5,299.00Product Parameters
| Parameter Category | Specific Specifications |
|---|---|
| Module Type | 3500 Series industrial communication gateway module |
| Supported Protocols | Ethernet/IP, Modbus TCP, OPC UA, Bently proprietary protocol (for System 1) |
| Network Interfaces | 2× RJ45 (10/100/1000 Mbps), redundant configuration supported |
| Data Transmission Latency | ≤10ms (real-time sensor data) |
| Connection Capacity | Up to 32 3500 Series I/O modules per gateway, 16 concurrent client connections |
| Operating Temperature | -40°C ~ 70°C |
| Protection Grade | IP20 (rack installation) |
| Power Supply | 24 VDC redundant power supply (±10%) |
| Compatibility | Bently 3500/25 Keyphasor modules, 3500/40M vibration modules, 3500/05 frame controller |
| Certification | ATEX, IECEx, UL 508, CE, FCC Part 15 |
| Dimensions (L×W×H) | 147 mm × 102 mm × 38 mm |
| Weight | 0.6 kg |
| Security Features | SSL/TLS encryption, access control lists (ACLs), password protection |
BENTLY 125808-01
¥999.00Core Communication Specifications
- Communication Protocols: Modbus TCP/IP, OPC UA, Ethernet/IP, Bently proprietary API
- Network Interfaces: 2× Gigabit Ethernet ports (RJ45), 1× fiber optic port (single-mode, optional)
- Data Transfer Rate: Up to 1 Gbps (Ethernet), 100 Mbps (fiber)
- Latency: ≤50 ms (real-time data transmission)
- Supported Data Types: Process values, alarm statuses, diagnostic logs, trend data

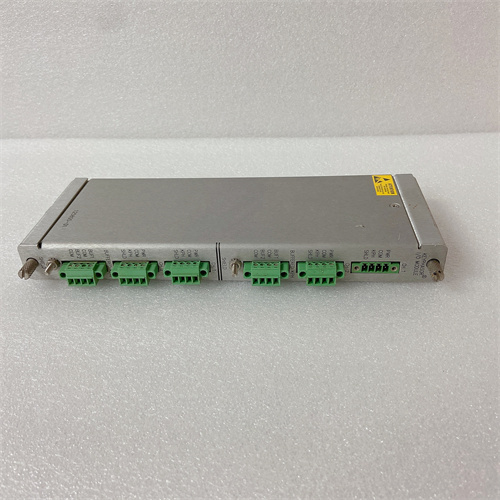

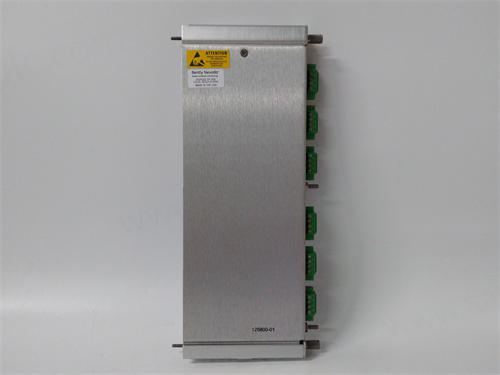

BENTLY 125800-01 3500/25
¥5,299.00Product Parameters
| Parameter Category | Specific Specifications |
|---|---|
| Module Type | 3500 Series Keyphasor® speed/phase monitoring module |
| Input Channels | 2 independent Keyphasor inputs (redundant configuration supported) |
| Input Signal Type | Eddy current proximity probe (0-20 V peak-to-peak), TTL logic input |
| Speed Measurement Range | 0.1 RPM to 100,000 RPM |
| Phase Accuracy | ±0.1° (at rated speed) |
| Timing Resolution | 1 μs (Keyphasor event capture) |
| Output Signals | 4-20 mA (speed), relay contact (over/under speed alarm), digital pulse (synchronized) |
| Communication Interface | Modbus TCP/Ethernet (for data upload to System 1 software) |
| Operating Temperature | -40°C ~ 70°C |
| Protection Grade | IP20 (rack installation) |
| Power Supply | 24 VDC redundant power supply (±10%) |
| Compatibility | Bently 3300 XL proximity probes, 3500/40M vibration modules, 3500/05 frame controller |
| Certification | ATEX, IECEx, UL 508, CE |
| Dimensions (L×W×H) | 147 mm × 102 mm × 38 mm |
| Weight | 0.5 kg |

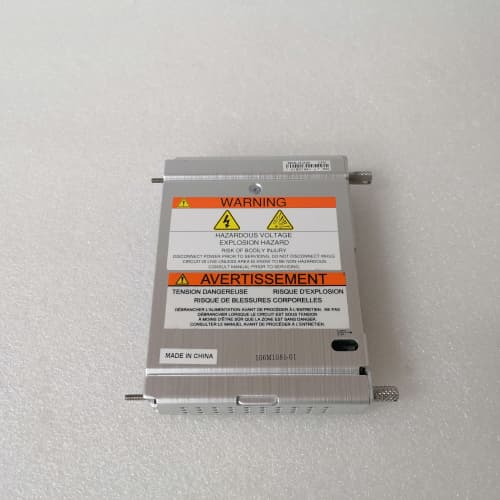

BENTLY 106M1081-01
¥5,999.00Core Functional Specifications
- Probe Compatibility: Bently 3300 XL 8 mm, 11 mm, and 25 mm proximity probes
- Measurement Range: 0–2 mm (8 mm probes), 0–5 mm (11 mm probes), 0–12 mm (25 mm probes)
- Output Signal: 4–20 mA DC (proportional to shaft displacement) + 0–10 V DC (auxiliary output)
- Measurement Accuracy: ±0.1% of full scale (at 25°C)
- Response Time: ≤10 ms (signal processing latency)
- Excitation Voltage: -24 VDC (for proximity probe power)
BENTLY 106M1079-01
¥2,599.00Product Parameters
| Parameter Category | Specific Specifications |
|---|---|
| Cable Type | Shielded extension cable for 3300 Series proximity probes |
| Impedance | 50 Ω (matched with Bently 3300 XL probes) |
| Cable Length | 3 meters (custom lengths available: 1m/5m/10m) |
| Connector Type | Male DIN 43650 A (probe end) / Female DIN 43650 A (conditioner end) |
| Shielding Layer | Double-layer braided copper shield (95% coverage) + aluminum foil shield |
| Conductor Material | Tinned copper (22 AWG) |
| Operating Temperature | -55°C ~ +125°C (continuous operation) |
| Environmental Resistance | Oil-resistant (ISO 6722), UV-resistant, moisture-resistant (IP67 for connectors) |
| Compatibility | Bently 3300 XL 8mm/11mm/25mm proximity probes, 3500/40M vibration modules |
| Certification | UL Recognized (UL 1015), CE, ATEX/IECEx (for hazardous areas) |
| Bend Radius | 10× cable diameter (static) / 15× cable diameter (dynamic) |
| Voltage Rating | 300 V AC/DC |
| Color Coding | Black outer jacket with white labeling for length and model identificat |
BENTLY 1034549-20
¥2,599.00Core Monitoring Specifications
- Vibration measurement range: 0–25.4 mm/s (RMS) or 0–500 μm (peak-peak displacement)
- Frequency response: 0.5–1000 Hz (vibration), 0–200 Hz (shaft displacement)
- Measurement accuracy: ±0.1% of full scale (vibration), ±0.5 μm (displacement)
- Alarm thresholds: Programmable first-level (warning) and second-level (trip) limits
- Input channels: 4 independent channels (compatible with Bently 3300 XL proximity probes and accelerometers)
BENTLY 102618-01
¥2,599.00Product Parameters
| Parameter Category | Specific Specifications |
|---|---|
| Module Type | 3500 Series dual-channel vibration monitoring module |
| Measurement Range | 0-50 mm/s (velocity), 0-200 g (acceleration), 0-500 μm (displacement) |
| Measurement Accuracy | ±0.1% FS (full scale) |
| Input Signal | IEPE accelerometer (4-20 mA), eddy current displacement sensor (0-10 V) |
| Sampling Rate | 1024 Hz/ch (configurable up to 2048 Hz) |
| Alarm Thresholds | 2 programmable levels (warning, danger) + 1 user-defined threshold |
| Output Interface | 4-20 mA analog output, relay contact output (alarm), Ethernet/Modbus TCP digital output |
| Operating Temperature | -40°C ~ 70°C |
| Protection Grade | IP20 (rack installation) |
| Power Supply | 24 VDC redundant power supply (±10%) |
| Compatible System | Bently Nevada 3500/22M, 3500/40M frame controllers |
| Dimensions (L×W×H) | 147 mm × 102 mm × 38 mm |
| Installation Method | 3500 Series rack card installation |
| Certification | ATEX, IECEx, UL 508 |
BENTLY 330130-075-00-CN
¥1,299.00Technical Specifications
| Category | Details |
|---|---|
| Measurement Principle | Eddy current (proximity detection) |
| Measurement Range | 0–7.5 mm (0–0.3 inches) linear displacement |
| Output Signal | Requires pairing with a signal conditioner (e.g., 3300 XL) for 4–20 mA |
| Probe Construction | 316L stainless steel body, hermetically sealed (IP68) |
| Operating Temperature | -40°C to +121°C (-40°F to +250°F) |
| Target Material | Ferromagnetic metals (e.g., carbon steel, alloy steel) |
| Probe Length | 50 mm (2 inches) standard (custom lengths available) |
| Probe Diameter | 10 mm (0.39 inches) |
| Certifications | ATEX, IECEx, IP68, CCC (China Compulsory Certification) |
| Cable Type | Shielded twisted-pair cable (5 m standard; extended lengths optional) |
BENTLY 3500/22M 138607-01
Technical Parameters of BENTLY 3500/22M 138607-01
The parameters of the BENTLY 3500/22M 138607-01 meet stringent industrial standards for machinery protection, ensuring reliable performance even in harsh conditions (extreme temperatures, electromagnetic interference):
- Module Type: 4-channel relay output module, designed for rack-mounted installation in the Bently 3500 System chassis (compatible with 3500/15 Power Supply and 3500/20 Monitoring Frame).
- Relay Output Specifications:
- Number of Channels: 4 independent, configurable relays (Form C: Normally Open/Closed, Single-Pole Double-Throw).
- Rated Voltage/Currency: 250 V AC @ 5 A (resistive load); 30 V DC @ 5 A (resistive load) — suitable for powering industrial alarms, contactors, and shutdown valves.
- Switching Time: ≤10 ms (from signal input to relay activation) — fast enough to prevent damage during sudden machinery anomalies (e.g., rotor imbalance).
- Relay Life: ≥100,000 operations (at rated load) — ensures long-term reliability in high-cycle applications (e.g., frequent start/stop sequences in refineries).
- Input Signal Compatibility:
- Accepts digital signals from Bently 3500 monitoring modules (e.g., 3500/40 Vibration Monitor, 3500/50 Temperature Monitor) via the system’s backplane.
- Supports two alarm levels per channel: “Warning” (non-critical, triggers alerts) and “Trip” (critical, triggers shutdowns) — configurable via Bently 3500 Configuration Software.
- Environmental & Electrical Ratings:
- Operating Temperature Range: -40 °C to +70 °C (-40 °F to +158 °F) — suitable for outdoor installations (e.g., offshore platforms) and high-temperature environments (steel mills).
- Humidity Resistance: 5% to 95% RH (non-condensing) — prevents moisture-related short circuits in humid facilities (e.g., paper mills).
- Electromagnetic Compatibility (EMC): Compliant with EN 61000-6-2 (industrial immunity) — unaffected by interference from nearby motors, transformers, or high-voltage lines.
- Power Requirements: 24 V DC ±10% (supplied by Bently 3500/15 Power Supply), Power Consumption: ≤5 W — low energy use, reducing heat buildup in the chassis.
- Diagnostic Features:
- Built-in relay status LEDs (green = normal, red = activated, yellow = fault) — enables visual verification of module health.
- Backplane communication diagnostics — alerts the 3500 system to wiring errors or relay failures (e.g., welded contacts) via the central HMI.
BENTLY CFP-AI-111
Technical Parameters of BENTLY CFP-AI-111
The BENTLY CFP-AI-111 is an analog input module tailored for Condition Monitoring Systems (CMS) of rotating machinery, with parameters optimized for industrial-grade reliability and accuracy:
- Core Module Specifications: 4 independent analog input channels, compatible with mainstream monitoring systems such as Bently Nevada 3500 and 1701, supporting “plug-and-play” cartridge-style installation.
- Sensor Compatibility:
- Passive Sensors: Supports Pt100/Pt1000 Resistance Temperature Detectors (RTDs, temperature range: -200°C to +850°C) and J/K/T/E/R/S/B-type thermocouples (temperature range: -270°C to +1768°C, depending on type).
- Active Sensors: Supports 4–20mA current signals and 0–10V voltage signals (compatible with Bently Nevada 3300 XL vibration sensors, shaft position sensors, pressure sensors, etc.).
- Measurement Accuracy:
- RTD temperature accuracy: ±0.05°C; thermocouple temperature accuracy: ±0.1°C; 4–20mA/0–10V signal accuracy: ±0.02% of Full Scale Range (FSR)—ensuring even tiny changes in critical parameters like vibration and shaft position are accurately captured.
- Sampling Rate: 100 samples per second per channel, enabling real-time recording of pulse-like vibrations caused by rotor imbalance.
- Electrical Performance:
- Power Supply: 24V DC (wide voltage range: 20–30V DC), maximum power consumption: 150mA.
- Protection Design: Input channels feature short-circuit protection (withstands 50V DC) and Electrostatic Discharge (ESD) protection (complies with IEC 61000-4-2 Level 4). Optical isolation (2500V AC for 1 minute) is provided between inputs, data bus, and power supply to isolate external interference.
- Environmental Adaptability:
- Operating Temperature: 0°C to +60°C; Relative Humidity: 5%–95% (no condensation).
- Protection Rating: IP20 (suitable for enclosed cabinet installation); Vibration Resistance: 5Hz (amplitude 0.15mm), meeting operational requirements of power plants, oil and gas platforms, etc.
- Structure & Indicators: Dimensions: 160mm × 100mm × 25mm (fits Bently system cabinets). Each channel is equipped with “Channel Active” and “Channel Fault” LED indicators, with power and communication status displayed simultaneously for quick module status diagnosis.
For more detailed parameters of the BENTLY CFP-AI-111, visit the official link: [BENTLY CFP-AI-111 Product Link](Your provided link will be inserted here).
BENTLY 79492-01
Technical Parameters
The BENTLY 79492-01 features the following key parameters (details via the product link):
- Device Type: Inductive vibration sensor from the BENTLY Nevada 3300 XL series;
- Measurement Characteristics:
- Vibration measurement range: 0–254 μm (vibration severity);
- Frequency range: 10–1000 Hz;
- Accuracy: ±1% of full scale;
- Electrical Characteristics:
- Power supply: 12–24 V DC;
- Output signal: 4–20 mA (proportional to vibration amplitude);
- Maximum output current: 25 mA;
- Isolation: Galvanic (1000 V RMS);
- Operating Conditions:
- Housing: Hermetic, material—stainless steel, protection class IP65;
- Dimensions: 50 mm × 30 mm × 20 mm (length × diameter);
- Operating temperature: -50 °C – +120 °C;
- Humidity: 0–100% RH (condensation allowed);
- Certifications: CE, ATEX, IECEx, ISO 9001.
