–Series: Part of the ABB AC800M I/O system1, which is a modular and scalable system designed for various industrial applications.
–Parameters and Specifications:
–InterfaceType: PROFIBUS DP1
–PROFIBUS DP Rate: Supports up to 3 Mbps1
–Node Address: 0 to 311
–Power Supply Voltage: 24 VDC1
–Power Consumption: 5W1
–Operating Temperature: -20°C to +60°C1
–Storage Temperature: -40°C to +85°C1
–Dimensions and Weight:
–Size: 110 mm x 60 mm x 25 mm1
–Weight: 200 grams1
–Features:
–High Reliability: Utilizes high-quality components and advanced design for stable and reliable operation1
–Configurability: Comes with preview software for easy configuration and management of the module1
–Flexibility: Supports PROFIBUS DP V1 protocol, allowing integration into existing PROFIBUS networks1
–Integrated Voltage Source: Provides a DC 24V voltage source for powering sensors and outputs2
–Functions:

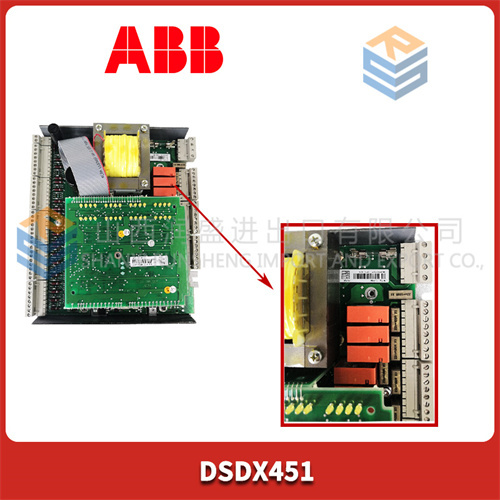

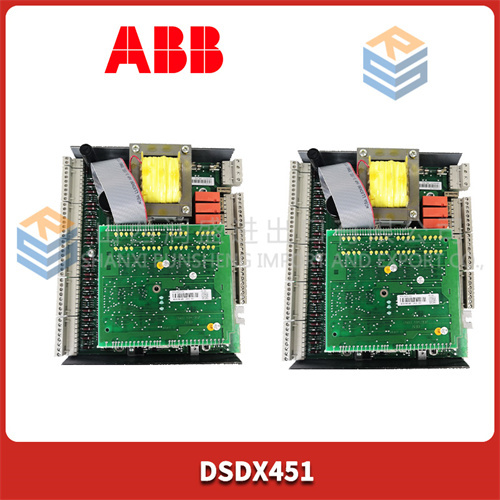

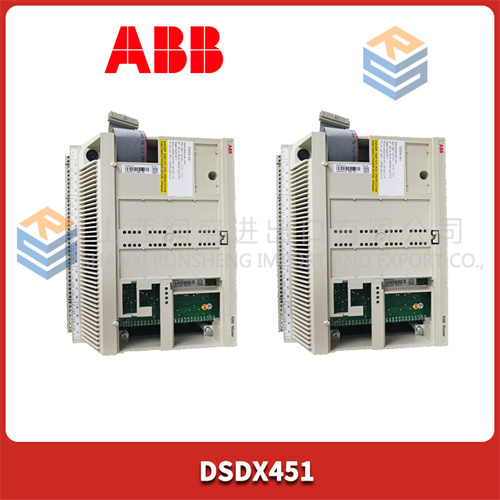

- Acts as an interface module between industrial control systems and field devices3
- Handles 20 digital inputs and 12 digital outputs, suitable for various automation tasks32
- The digital outputs are fully isolated relay contacts, suitable for a wide range of AC and DC voltages (24 V-240 V)32
- Supports industrial automation applications requiring precise control and monitoring of input and output signals
