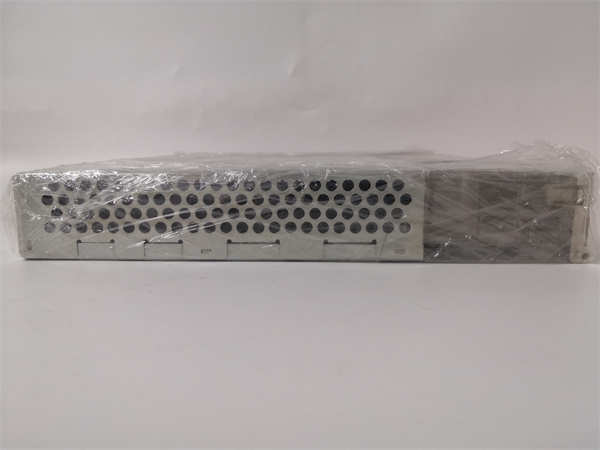

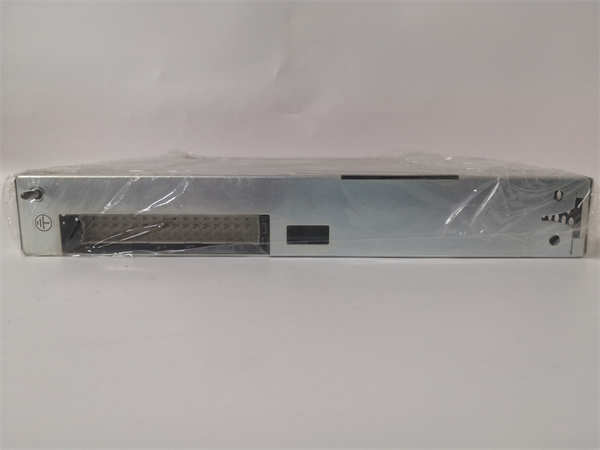

1. Product Description
The DO610 is a significant PLC spare part that serves as a key component in industrial automation systems. This device is designed to handle digital output operations with high precision and reliability, playing a crucial role in controlling various industrial equipment.
The core function of the DO610 is to convert control signals from the PLC into physical actions by driving external devices. It can receive digital signals from the programmable logic controller and then use these signals to control relays, solenoid valves, and other digital – controlled actuators. This allows for the automation of complex industrial processes, such as machine tool operation, conveyor belt movement, and packaging machine functions.
One of the main advantages of the DO610 is its high – current output capacity. It can drive high – power devices directly, eliminating the need for additional power amplifiers in many cases. This not only simplifies the system design but also reduces the cost and potential failure points. Additionally, it offers excellent electrical isolation, which enhances the safety and stability of the control system.
2. Product Parameters
| Parameter | Specification |
|---|---|
| Power Supply | 24V DC (±15%) |
| Output Channels | 16 digital output channels |
| Output Current per Channel | Up to 2A |
| Output Voltage | 24V DC |
| Isolation Voltage | 2500V AC |
| Switching Frequency | Up to 10Hz |
| Operating Temperature | – 20°C to + 60°C |
| Storage Temperature | – 40°C to + 85°C |
3. Advantages and Features
- High – Current Output: With an output current of up to 2A per channel, the DO610 can directly drive high – power devices like large – sized solenoid valves and contactors. In a heavy – duty manufacturing process, it can control the operation of powerful equipment without the need for additional power – boosting devices, improving system efficiency.
- Excellent Electrical Isolation: The 2500V AC isolation voltage protects the control system from electrical interference and short – circuits. In an industrial environment with high – voltage equipment, this isolation feature ensures the reliable operation of the DO610 and other connected devices.
- Fast Switching Speed: The maximum switching frequency of 10Hz allows for quick response to control signals. In a high – speed packaging line, it can rapidly switch the output states to control the packaging process accurately, reducing the number of defective products.
4. Application Areas and Application Cases
- Application Areas: The DO610 is widely used in industries such as manufacturing, automotive, and food processing. It can be applied in scenarios like machine control, process automation, and safety interlock systems.
- Application Case: In an automotive assembly plant, the DO610 was used to control the pneumatic actuators on the assembly line. By precisely controlling the opening and closing of the solenoid valves, it ensured the accurate positioning of car parts during the assembly process. As a result, the assembly quality was improved, and the production efficiency increased by 12%.
5. Competitor Comparison
Compared with other similar products in the market, the DO610 stands out in several aspects. Its high – current output capacity is greater than many competing products, allowing it to handle more power – hungry devices. The excellent electrical isolation provides better protection for the control system, reducing the risk of electrical failures. And the fast switching speed enables more rapid control of industrial processes, enhancing overall productivity.
6. Selection Recommendations
- Compatibility: Ensure that the DO610 is compatible with your existing PLC system. Check the communication protocol, power supply requirements, and input/output signal types to avoid any integration issues.
- Installation Environment: Consider the temperature, humidity, and dust levels in the installation area. The DO610 has a wide operating temperature range, but extreme conditions may still require additional protective measures.
- Budget: Evaluate your budget carefully. While the DO610 offers high – performance features, make sure it fits within your financial constraints.
7. Precautions
- Safety Regulations: When installing and using the DO610, follow all relevant safety regulations. Ensure proper grounding to prevent electrical shock and short – circuits.
- Maintenance Recommendations: Regularly check the output channels for any signs of overheating or damage. Clean the device to prevent dust accumulation, which can affect its performance. It is also advisable to perform periodic insulation resistance tests to ensure the integrity of the electrical isolation.
Shanxi Runsheng Import and Export Co., Ltd. is your trusted partner. We provide the DO610 and other automation spare parts sales and technical support. Please visit our website www.sxrsrobot.com or contact us, and we will serve you whole – heartedly.
