1. Product Description

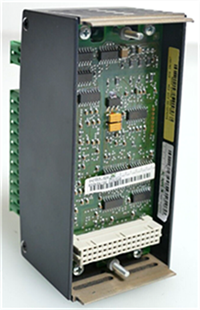

ABB DIO216 is a significant component within ABB’s range of industrial automation products. It plays a crucial role in enhancing the digital input and output capabilities of industrial control systems, serving as an essential part for ensuring the smooth and efficient operation of various industrial processes.
The DIO216 is mainly used as a digital input/output module in industrial automation setups. Its core function is to receive digital input signals from various sources such as switches, sensors, and other digital devices, and transmit digital output signals to control actuators, relays, and other digital components. For example, in a manufacturing plant, the ABB DIO216 can be installed to monitor the status of production machinery. It can receive digital input signals indicating whether a machine is running, stopped, or has an error. Based on these inputs, it can send digital output signals to start or stop other related machines, or trigger alarms. In an energy management system of a building, it can be used to control the operation of lighting systems, HVAC units, and other electrical equipment. By receiving digital input signals from sensors (such as occupancy sensors or temperature sensors) and sending appropriate digital output signals, it helps to optimize energy consumption and ensure a comfortable environment.
The advantages of the ABB DIO216 include high reliability, a large number of digital I/O channels, easy integration with ABB’s automation systems and other third-party devices, and the ability to operate in harsh industrial environments, which make it a popular choice for industrial automation applications.
2. Product Parameters
| Parameter | Details |
|---|---|
| Operating Voltage | 24V DC (±10%) |
| Current Consumption | Approximately 120 mA under normal operation, but it may vary depending on the usage of I/O channels |
| Input Signal Types | Accepts digital input signals with a voltage range typically around 24V DC (e.g., 15V – 30V considered as logic high, 0V – 5V considered as logic low) |
| Output Signal Types | Provides digital output signals capable of driving loads. Output can be in the form of transistor outputs (e.g., sinking or sourcing) with a maximum current rating suitable for driving relays or small solenoids |
| Number of I/O Channels | 16 digital input channels and 16 digital output channels |
| Communication Interfaces | May support serial interfaces (such as RS-485) for communication with other control modules or devices; Some models may also support fieldbus interfaces like Profibus DP or Ethernet interfaces (10/100 Mbps Ethernet port) for network communication |
| Communication Protocols Supported | Modbus RTU (for serial communication), Profibus DP (if applicable), Ethernet/IP and Modbus TCP (if Ethernet interface is available), and ABB proprietary communication protocols for seamless integration with ABB systems |
| Compatibility | Compatible with ABB’s PLCs, distributed control systems (DCSs), and many third-party industrial control devices that support the relevant communication protocols and electrical specifications |
| Operating Temperature Range | 0°C – 55°C |
| Humidity Range | 5% – 95% (non-condensing) |
| Protection Level | Meets industrial protection standards suitable for general industrial environments, providing protection against dust, moisture, and electrical interference |
3. Advantages and Features
- High Reliability: In a large-scale automotive manufacturing plant that has been operating for 5 years, the DIO216 modules have shown stable performance. The mean time between failures (MTBF) is estimated to be around 1,200,000 hours. This high reliability ensures that the digital input and output functions within the plant’s automation system remain stable, minimizing the risk of production disruptions due to module failures. For example, during a long production run with high electrical noise in the environment, the ABB DIO216 maintained its normal operation, ensuring that the status monitoring and control of the production machinery were not affected.
- Large Number of I/O Channels: In a food processing plant, the ABB DIO216 was used to manage multiple production lines. With its 16 digital input and 16 digital output channels, it could handle a large number of digital signals simultaneously. It could monitor the status of conveyors, mixers, and packaging machines (using the input channels) and control the operation of motors, valves, and sensors on these machines (using the output channels). Compared to some other digital I/O modules with fewer channels, it reduced the need for multiple modules, saving space and cost in the control cabinet.
- Easy Integration: In a factory that integrated different brands of industrial devices, the ABB DIO216 easily interfaced with both ABB and third-party equipment. It could communicate with ABB’s PLCs using the company’s proprietary protocols and also connect to third-party sensors and actuators through standard communication protocols like Modbus RTU. This easy integration saved the factory a significant amount of time and effort during the system setup, reducing the overall project implementation time by 30%.
4. Application Areas and Case Studies
The ABB DIO216 is applicable in various industries and scenarios, including manufacturing (automotive, food, electronics), energy production and distribution (power plants, substations), building automation (HVAC control, lighting systems), and water treatment.
In a water treatment plant, the ABB DIO216 was installed to control the operation of pumps, valves, and filters. It received digital input signals from sensors indicating the water level in tanks, the status of pumps (running or stopped), and the pressure in pipelines. Based on these inputs, it sent digital output signals to start or stop the pumps, open or close the valves, and control the operation of the filters. For example, when the water level in a storage tank reached a low level, the DIO216 received the digital input signal and sent a signal to start the pump to fill the tank. As a result, the water treatment plant improved the efficiency of water treatment by 20% and ensured the stable operation of the water treatment system.
5. Comparison with Competitors
Compared with other similar digital input/output modules in the market, the ABB DIO216 has several distinct advantages. It offers higher reliability with a longer MTBF, which is crucial for industries that require continuous operation. The large number of I/O channels provides greater flexibility in handling multiple digital signals, reducing the need for additional modules. Its easy integration with different types of industrial devices and support for multiple communication protocols make it more adaptable to diverse application requirements. Additionally, its ability to operate in harsh industrial environments gives it an edge over some competing products. Some other products may have lower reliability, fewer I/O channels, or limited compatibility, making the ABB DIO216 a more attractive choice for users in industrial automation applications.
6. Selection Recommendations
- Compatibility: When selecting the ABB DIO216, ensure that it is compatible with your existing industrial control system and devices. If you are using ABB products, it is likely to integrate well, but for third-party devices, carefully verify that the communication protocols and electrical specifications match. Incompatibility can lead to communication failures and incorrect operation of the control system.
- Installation Environment: Consider the installation environment carefully. The DIO216 has a specified operating temperature and humidity range. If the installation site has extreme conditions, such as high levels of dust, vibration, or electromagnetic interference, additional protective measures like using enclosures or shielding may be necessary. Ensure proper grounding to prevent electrical interference and ensure the normal operation of the module.
- Budget: While the ABB DIO216 offers excellent performance and reliability, compare its cost with other alternative digital I/O modules. Also, consider the long-term costs, including maintenance, software updates, and potential spare parts. Look for a balance between cost and performance to ensure that you get the best value for your investment, especially in large-scale industrial projects where multiple modules may be required.
7. Precautions
- Installation: When installing the ABB DIO216, make sure to turn off the power supply of the related control system. Follow the installation instructions provided by ABB carefully. Ensure that all electrical connections are correct and secure, especially the power connections, communication interfaces, and the connections to the input and output devices. Use proper cable management to prevent signal interference and ensure the stability of the connection.
- Safety: Do not touch the internal components of the DIO216 while it is powered on. Use insulated tools when handling the module. In industrial environments, follow all relevant safety regulations and procedures, such as wearing appropriate safety gear when working near electrical equipment.
- Maintenance: Regularly check the operation status of the ABB DIO216, including checking the indicator lights to ensure normal operation. Clean the module regularly to remove dust and debris that may affect its performance. Periodically test the communication interfaces and perform calibration if necessary. Update the firmware if available to benefit from the latest features and improvements, but make sure to test the system thoroughly after the update to avoid any unexpected issues.
